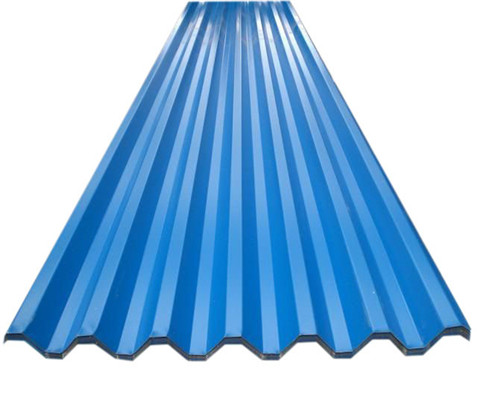

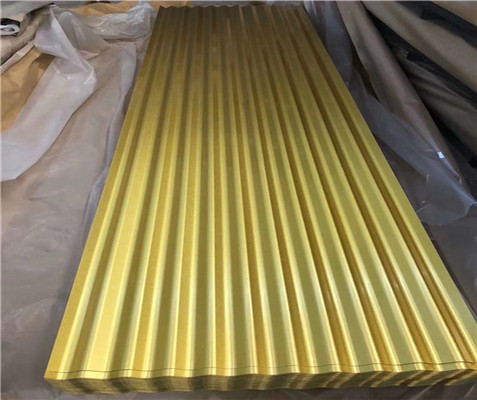

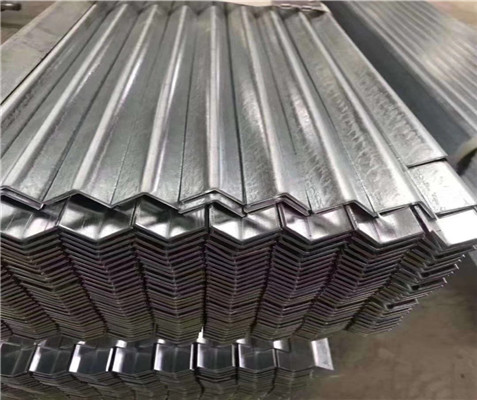

Corrugation Steel Step Roofing Sheet/Color Glazed Roofing Alu-Zinc Sheet

Corrugation Steel Step Roofing Sheet is a premium roofing profile that has the appearance of tiles but the strength and light weight advantage of steel. It is available in a range of colours, various thicknesses and is a
lightweight, durable and beautiful product that is ideal for the most discerning user.

1) Standard: JIS G3302, JIS G3313, ASTM A653, AISI, GB ect.
2) Grade: SGCC, CGCC, SPCC, SGCH, DX51D
3) Thick: 0.3mm-0.8mm
4) Effective Width: 1045mm,980mm, 930mm, 828mm
5) Length: 1600mm-11800mm or according to customers' requests
6) Surface treatment: galvanized, Aluzinc and color coated


Standard	JIS G3322 CGLCC ASTM A755 CS-B	Surface coating color	RAL colors
Back side coatingcolor	Light grey ,white and so on	Package	export standard package or as request
Type of coating process	Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying
Type of substrate	hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum
Thickness	0.16-1.2mm	Width	600-1250mm
Coil Weight	3-9Tons	Inside Diameter	508mm Or 610mm
Zinc Coating	Z50-Z275G	Painting	Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
Coating introduction	Top paint: PVDF, HDP, SMP, PE, PU
	Prime paint: Polyurethane, Epoxy, PE
	Back paint: Epoxy, Modified polyester
Productivity	150,000Tons/year

Step Tile Roofing Sheet Roof Pitch:
Step Tile Roofing Sheet can be used on a roof pitched from as low as 100

Step Tile Roofing Sheet Side Slapping:
A standard lap is 1 flute. It is generally considered good practice to use fasteners along side laps.

Step Tile Roofing Sheet raw materials:
Galvanized steel, Galvalume Steel, Galvalume Pre-painted sheet and aluminium sheet

Step Tile Roofing Sheet installation tips:
1. Workers must be equipped with the necessary safety facilities (gloves, safety helmet, safety belt)
2. Worker is professional, who has the related certificate
3. The skeleton should be installed stably
4. Workers try to stand in the middle of tiles, avoiding avoid step on the edge of tiles, it is dangerous
5. Please avoid the bad weather when install the prefab house.
