09CuPCrNi-A Weathering Steel: A Performance Breakdown from a Real Mill Test Certificate

1. What 09CuPCrNi-A means

09CuPCrNi-A is a low-alloy weathering structural steel. The grade designation reads as follows:

• 09: average carbon content around 0.09%, a low-carbon grade that balances formability with weldability.
• Cu (copper): the core element for atmospheric corrosion resistance, forming a dense protective oxide film on the surface.
• P (phosphorus): works together with Cu to boost the anti-corrosion effect, though it is sensitive to cold brittleness and must be balanced with other elements.
• Cr (chromium): improves corrosion resistance, especially in media containing Cl⁻ or SO₂.
• Ni (nickel): improves low-temperature toughness and offsets the cold-brittleness tendency introduced by phosphorus.
• A: the quality grade, indicating conventional sulphur and phosphorus control.

Under GB/T 4171 Atmospheric corrosion resisting structural steels, 09CuPCrNi-A sits in the high weathering resistance category. Its corrosion resistance is clearly better than ordinary structural steels such as Q235 and Q345, while its cost is far below stainless steel — which is why it is used in large volumes for outdoor steel structures like vehicles, containers, towers, and railway facilities.

2. Measured chemical composition

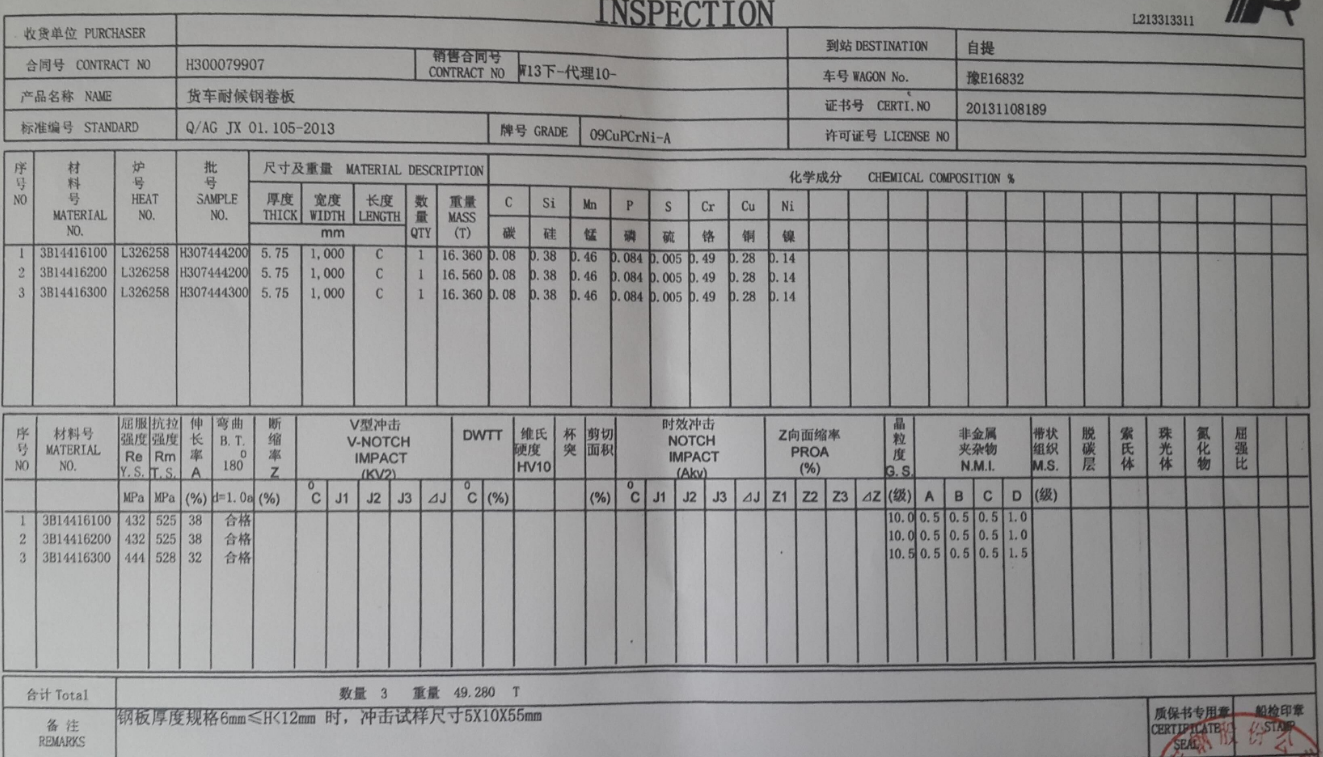

The table below is compiled from the actual values on the certificate for this batch, covering heat/material numbers 3B14416100, 3B14416200, and 3B14416300. Values for C, Si, Mn, P, and S are the product analysis figures; Cu, Cr, and Ni are the ladle analysis values stated on the certificate.

Two things stand out. First, the steel cleanliness is high: sulphur is only 0.005%, well below the usual ≤0.020% cap, which helps keep through-thickness properties uniform. Second, Cu at 0.28% and P at 0.084% sit inside the weathering alloying window, so a stable Cu–P oxide film can form during corrosion. Ni at 0.14% is slightly below the typical lower bound, but the impact on a thin 5.75 mm product is limited, and the overall chemistry still meets weathering requirements for vehicle steel.


3. Mechanical and processing properties

Mechanical test results for the three coils in this batch are shown below. Yield strength, tensile strength, and elongation are longitudinal values from the certificate.

A few points worth noting:

1. Yield ratio: yield / tensile sits around 0.82–0.84, a comfortable range for vehicle structural steel. It offers enough resistance to deformation after forming while keeping sufficient plastic reserve for cold stamping and roll forming.
2. Elongation: 32–38%, clearly above ordinary Q345 (about 21%). This means the material is unlikely to crack during stamping and bending — useful for freight wagon side panels and floor plates that need large deformation.
3. Impact: the certificate marks the Charpy V-notch column as "Pass" without a specific joule value. The remarks on the certificate note: "for plate thickness 5 mm ≤ H < 12 mm, impact test specimen size is 5×10×55 mm", i.e. a sub-size specimen. This matters when buyers verify the specimen dimensions at acceptance.
4. Bend: 180° bend with B = 1.0a (a = specimen thickness) passes, confirming good ductility for downstream folding and rolling operations.
5. Grain size and inclusions: grain size of 10.0–10.5 is a fine grain, favourable for ductility and toughness. Non-metallic inclusions rated per GB/T 10561 for types A, B, C, D are all controlled to a low 0.5–1.5 level, indicating clean steel.

4. Typical applications

Given the chemistry design (low carbon, low sulphur, Cu–P–Cr–Ni alloying) and the processing properties (high elongation, good cold formability, passing impact), 09CuPCrNi-A is used mainly in:

• Railway freight wagons and rolling stock: side walls, end walls, floors, and door panels of open-top wagons — the largest, most traditional application, matching the "weathering steel coil for railway freight wagons" on this certificate.
• Container manufacturing: side panels, corrugated sheets, and end frames for ISO shipping containers or railway containers.
• Urban rail vehicles: car body structural parts for metro and light rail.
• Bridges and building steelwork: bridge members and outdoor stairways and industrial plant supports where weathering performance matters.
• Towers and vessels: telecom towers, power transmission towers, outdoor tanks, and agricultural machinery frames.

In vehicle manufacturing, 09CuPCrNi-A complements stainless steel and aluminium alloy as "lightweight + corrosion-resistant" options: when cost is the binding constraint and weight is not critical, 09CuPCrNi-A remains one of the most cost-effective choices.

5. Comparison with international grades

Weathering steel systems are broadly similar worldwide. 09CuPCrNi-A is close in composition and properties to the following common overseas grades, which helps when selecting material for export or drafting external documents:

One caveat: standards differ in impact test temperature, specimen size, and yield ratio requirements. When substituting across standards, check the specific clauses rather than matching grade names alone.

6. Selection and acceptance checklist

For a buyer, when reviewing a 09CuPCrNi-A mill test certificate, the key items to verify are:

1. Standard and grade: confirm Q/AG JX 01.105-2013 or GB/T 4171-2008 is stated, and that "09CuPCrNi-A" is spelled correctly and completely.
2. Chemical composition: check that Cu, P, Cr, and Ni fall inside the weathering alloying window and that S is low enough (typically ≤0.020%).
3. Mechanical properties: yield, tensile, and elongation meet the order requirements; note whether impact is a specific joule value or just "Pass".
4. Impact specimen size: thin gauges (5 mm ≤ H < 12 mm) usually use a 5×10×55 mm sub-size specimen — state this in the contract/technical agreement to avoid acceptance disputes later.
5. Dimensions and quantity: thickness, width, single-coil weight, and total weight match the order; this batch is 16.36 t per coil and 49.28 t in total.
6. Certificate and stamps: the mill's inspection seal and inspector's signature are present, and the certificate number is traceable.

Conclusion

The weathering ability of 09CuPCrNi-A does not come from a single element but from the combined action of Cu, P, Cr, and Ni. Copper provides the base oxide-film protection, phosphorus increases the density of the early rust layer, chromium improves resistance to Cl⁻ / SO₂ attack, and nickel balances the cold-brittleness brought by phosphorus. Add low-carbon design for good cold formability and weldability, and the result is a dependable grade for vehicle and outdoor structural steel.

A complete mill test certificate like the one behind this batch is the bridge between "product standard" and "actual quality". It lays out the chemical composition, mechanical properties, dimensions, quantity, and test results in one place, giving downstream customers a direct basis for process design, incoming inspection, and quality traceability.
