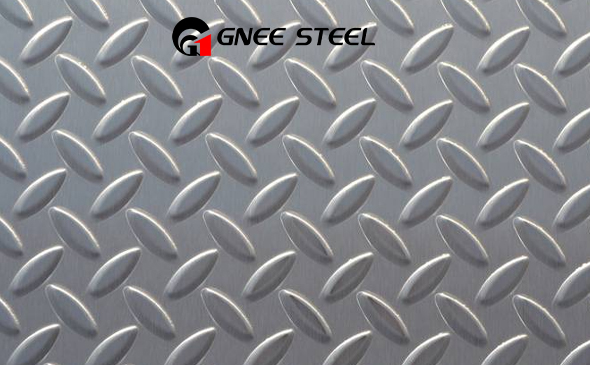

Galvanised checker plate
Galvanized Steel Checker Plate protects you everywhere
Steel can easily rust when exposed to moisture environment, so it should be painted or galvanized before using. Our checker plate products are all made of galvanized steel sheets, and they have an excellent weather resistance.
GRADES
Mild steel grade ASTM A36 is a low carbon steel that exhibits exceptional strength, coupled with formability. Galvanised chequer plates in this grade can be fabricated and machined easily and can be welded securely. ASTM A36 mild steel chequer plates can be galvanized to provide higher corrosion resistance.
Galvanised chequer plates are commonly hot-dip galvanised in accordance to ASTM A123 or EN ISO 1461 standard.
APPLICATIONS

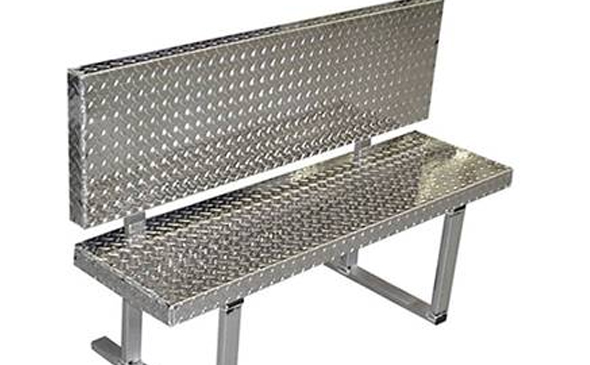

Uses of galvanised chequered plate include decorative, automobile, marine, architectural applications, residential and commercial buildings, engineering, industrial and shipbuilding.
The table below shows our best-selling specifications
| Thickness (mm) |
Tolerance (mm) |
weight (kg/m2) |
| Diamond |
Hyacinth bean |
Round bean |
| 2.5 |
±0.3 |
21.6 |
21.3 |
21.1 |
| 3.0 |
±0.3 |
25.6 |
24.4 |
24.3 |
| 3.5 |
± 0.3 |
29.5 |
28.4 |
28.3 |
| 4.0 |
±0.4 |
33.4 |
32.4 |
32.3 |
| 4.5 |
±0.4 |
37.3 |
36.4 |
36.2 |
| 5.0 |
+0.4 |
42.3 |
40.5 |
40.2 |
| -0.5 |
| 5.5 |
+0.4 |
46.2 |
44.3 |
44.1 |
| -0.5 |
| 6.0 |
+0.5 |
50.1 |
48.4 |
48.1 |
| -0.6 |
| 7.0 |
0.6 |
59 |
52.6 |
52.4 |
| -0.7 |
| 8.0 |
+0.6 |
66.8 |
56.4 |
56.2 |
Our stock has a wide range of popular specifications, or you can
contact us for special orders.
