Threaded Flanges
Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe. This type of joint connection is Speedy and simple but not suitable for high presser and temperature applications. Threaded Flanges are mostly used in utility services such as air and water.

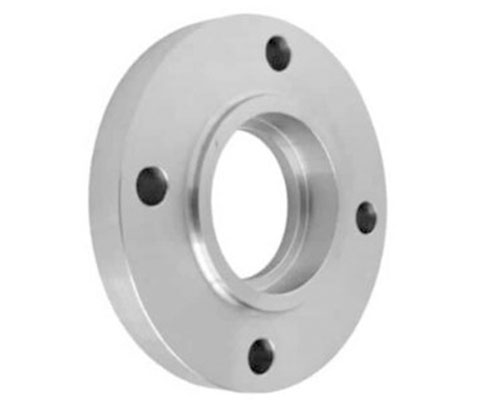

Socket-Weld Flanges
Socket-Weld Flanges has a female socket in which the pipe is fitted. Fillet welding is done from outside on the pipe. Generally, it is used in small bore piping and only suitable for low pressure and temperature application.

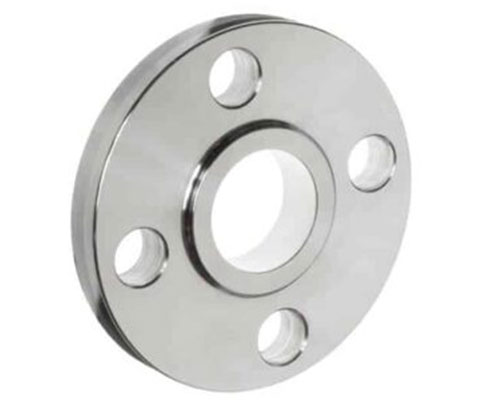

Slip-On Flanges
Slip-On flange has a hole with matching outside diameter of pipe from which pipe can pass. The flange is placed on pipe and fillet welded from both inside and outside. Slip-On Flange is suitable for low pressure and temperature application. This type of flange is available in large sizes also to connect big-bore piping with storage tank nozzles. Normally, these flanges are of forged construction and are provided with the hub. Sometimes, these flanges are fabricated from plates and are not provided with the hub.

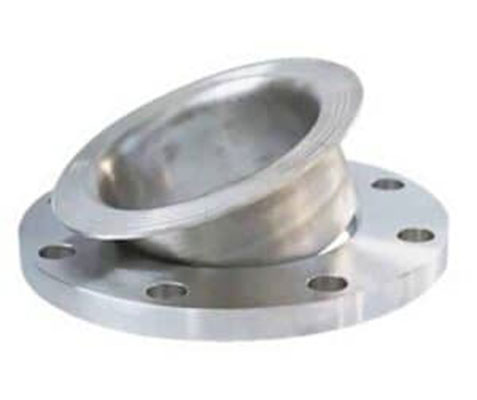

Lap Joint Flanges
Lap flange is having two components, a stub end, and a loose backing flange. Stub end is butt-welded to the pipe and Backing flange freely moves over the pipe. The backing flange can be of a different material than stub material and normally of the carbon steel to save the cost. Lap flange is used where frequent dismantling is required, and space is constrained.

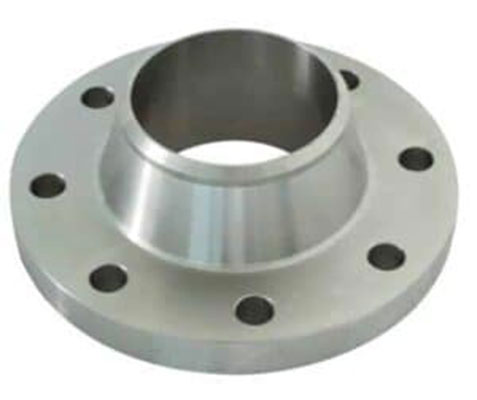

Weld Neck Flanges
Weld neck flange is the most widely used type in process piping. It gives the highest level of joint integrity due to Butt-welded with a pipe. These types of flanges are used in high pressure and temperature application. Weld neck flanges are Bulky & costly with respect to other types of the flange.

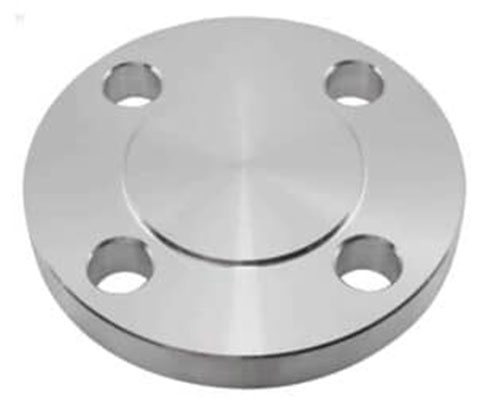

Blind Flanges
The blind flange is a blank disc with a bolt hole. These types of flanges are used with another type of flange to isolate the piping system or to terminate the piping as an end. Blind flanges are also used as a manhole cover in the vessel.
