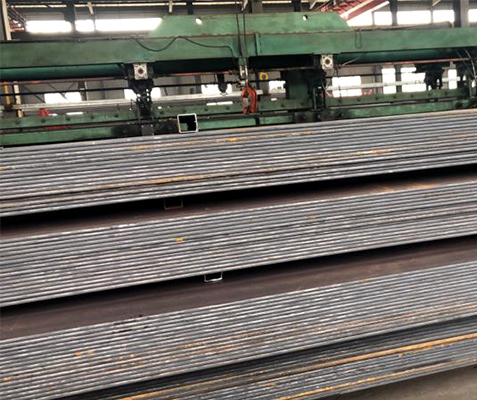

RINA Grade AH36 Marine Steel Plate
RINA Grade AH36 Marine Steel Plate
RINA Grade AH36 Marine Steel Plate
RINA Grade AH36 Marine Steel Plate

RINA Grade AH36 Marine Steel Plate

RINA AH36 steel is a kind of hot rolled high tensile strength steel. Higher-strength RINA shipbuilding steel comes in 12 grades of 3 strengths,AH36 is one of the grades. The RINA AH36 grade steel plates have yield strength of 315 MPa), and ultimate tensile strength of 440-570 MPa. All the RINA AH36 shipbuilding Steel offered by Gnee can be certificated by RINA.
Brief introduction of marine steel plate
RINA AH36 steel is a kind of hot rolled high tensile strength steel. Higher-strength RINA shipbuilding steel comes in 12 grades of 3 strengths,AH36 is one of the grades. The RINA AH36 grade steel plates have yield strength of 315 MPa), and ultimate tensile strength of 440-570 MPa. All the RINA AH36 shipbuilding Steel offered by Gnee can be certificated by RINA.

RINA is a founding member of the International Association of Classification Societies(IACS),formed in 1968. The RINA fleet is recognized by approximately 116 international flag authorities. RINA integrated services for the complate shipping cycle including design, building, shipyard management, inspection and testing of materials/components and regular inspections to maintain the class are used by freight, ferries, ro-ro, passenger ships, yachts, cruise ships, navy, LGN and other specialist carrier vessels.

Grade AH36 steel is the impact force subjected to 0 ° C
Grade DH36 steel impact force at  -20 ° C
Grade EH36 steel impact force at -40 ° C
Grade FH36  steel impact force at -60 ° C

Shot blasting service
Shot blasting is a method used to clean or polish steel when enhanced surface finishes are required. Shot blasting is used in almost every industry we serve. Especially in shipbuilding, rail,structural fabrication and more.

Specifications range
Thickness:2.5-120mm
Width:1000-3000mm
Length: As request

Chemical composition and mechanical properties
Chemical Composition
Steel grade C Si Mn P S Als
Grade AH36 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015
Grade DH36 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015
Grade EH36 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015
Grade FH36 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015

Processing for Different Grades
Grade D, E (DH32, DH36, EH 32, EH 36)
Grade D and E series (inlcuding AH32/36, DH32, DH36, EH32, EH36) shipbuilding steel plates require good low temperature toughness and good welding performance. The production high-strength shipbuilding steel plate needs to be normalized by means of controlled rolling and controlled cooling or heat treatment processes with more complete equipment. At the same time, the internal steel purity of the supplied billets is required to be high, especially the content of S, P, N, 0 and H in the steel should be strictly controlled.

Alloy Elements Added to Improve Toughness
In order to ensure the performance of high-strength ship plates, micro-alloying technology is adopted. By adding Nb, V, Ti and other alloying elements to the steel, combined with the controlled rolling process, the grain is refined and the toughness is improved.

Direction of Development for Shipbuilding Plate
High strength, high specification, with the ship's large-scale and safety, and changes in coating specifications, the demand for ordinary A-class panels is gradually reduced, and the demand for high-strength panels is increasing, which is concentrated in large ships of 5m wide. Plate, 200-300mm thickness special thick ship board.

Mechanical Properties
Steel grade Yield point/MPa Tensile point /MPa Elongation/% Temperature/° C V-type impact test
Akv/J
≤50MM 50-70MM 70-100MM
Grade AH36 ≥355 490-630 ≥21 0 34/24 41/27 50/34
Grade DH36 ≥355 490-630 ≥21 -20 34/24 41/27 50/34
Grade EH36 ≥355 490-630 ≥21 -40 34/24 41/27 50/34
Grade FH36 ≥355 490-630 ≥21 -60 34/24 41/27 50/34
