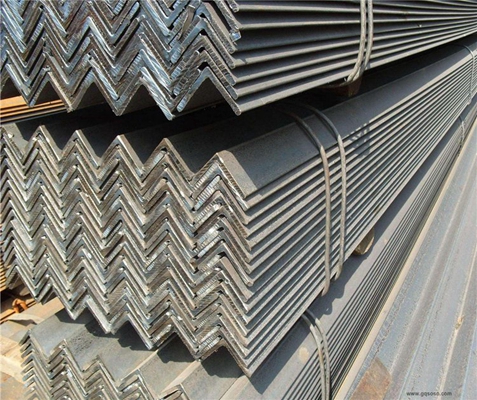

JIS SS400 Carbon Steel Angle

JIS SS400 Carbon Steel Angle
SS400 is a low carbon steel without specified carbon content. According to its mechanical properties, it is similar to ASTM A36 which is extensively used in engineering and industrial applications. Structural JIS SS400 steel angle is relatively cost-less and shows well in major engineering projects.

Unequal SS400 angle steel
Hot-dip galvanized & pre-painting are two popular surface treatments. Since SS400 angle iron doesn't have copper content or other alloy elements, it can't resist environment corrosion without additional protective coating like zinc-coating. The amount of zinc is customized depending on the specific application. In addition, there are a lot of colors for painting, which also adds aesthetic view.

SS400 angle steel description:

• Item: SS400 angle steel.
• Standard: JIS G3101-2004.
• Technology: hot rolled.
• Type: equal & unequal.
• Surface: black or galvanized.
• Length: 6 m, 9 m, 12 m or per your request.
• Equal angle:
  • Size: 20 × 20 mm to 200 × 200 mm.
  • Thickness: 3 to 20 mm.
  • Length: 6 m, 9 m, 12 m or per your request.
• Unequal angle:
  • Size: 30 × 20 mm to 250 × 90 mm.
  • Thickness: 3 to 10 mm.
  • Length: 6 m, 9 m, 12 m or per your request.

SS400 mild angle steel chemical composition

Steel grade	Styles	Carbon, max, %	Manganese, %	Phosphorus, max, %	Sulfur, max, %
SS400	Steel Shapes	--	--	0.050	0.050



SS400 carbon steel angle mechanical property

Steel grade	Styles	Tensile strength, MPa	Yield point, min, MPa
			Thickness, mm
			≤16	16 - 40
SS400	Steel shapes	400 - 510	≥245	≥235
