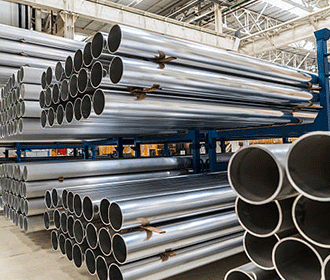

Aluminum Round Pipe

Aluminium Pipe can be produced in two types drawn and extruded aluminum pipe. Extruded aluminum pipe is stocked in both seamless and structural (port-hole die). Aluminium pipe is used in pressure or structural application. These Aluminium Pipe are light weight, excellent corrosion resistance, and the ability to transmit heat rapidly are only a few of the benefits of aluminum pipes.

There are 2 types of Aluminium Pipe:
1) Aluminium Extruded Pipe: Aluminium Extruded Pipe, formed by hot extruding through a die, is available as a seamless or structural grade product.
2) Aluminium Drawn Pipe: Aluminium Drawn Pipe is a seamless extruded Pipe is brought to final size by drawing through a die.


Aluminium Alloy	ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
Aluminium Pipe American Specifications:	ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
Aluminium Pipe British Specifications	H20, HE 20
Material	1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
Aluminium Pipe Standard	ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
Aluminium Pipe Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium Pipe Form	Aluminium extruded, seamless, drawn and coiled Pipe in Black & Bright Finish
Aluminium Pipe Sizes	1/8″ – 16″ (3mm – 2500mm) OD .020″ – 2″ (.2mm – 150mm) wall (1m-12m) Length
Machinability	Fair
Weldability	Good
Corrosion Resistance	Good
Aluminium Pipe	Bright, Polish & Black
Aluminium Pipe Surface	Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved
Surface treatment	Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
Aluminium Pipe Delivery Time	10-30 days after receiving the prepayment
Aluminium Pipe Packaging Details	Export standard package: bundled wooden box, suit for all kinds of transport or be required.
ASTM B210 Alloy Pipe Outer packing	Export standard, wooden pallet
Here are 6 different types of finishes for extruded aluminum Pipe:	Anodizing Powder Coating Liquid Coatings Chemical Finishes Mechanical Finishes Pretreatment
Applications	Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders

Standard Dimensions of Aluminium Pipe

6 mm Aluminum Pipe 8 mm Aluminum Pipe 9 mm Aluminum Pipe 10 mm Aluminum Pipe 12 mm Aluminum Pipe 12.7 mm Aluminum Pipe 14 mm Aluminum Pipe 16 mm Aluminum Pipe 18 mm Aluminum Pipe 19.05 mm Aluminum Pipe 20 mm Aluminum Pipe 22 mm Aluminum Pipe 24 mm Aluminum Pipe 25.4 mm Aluminum Pipe 27 mm Aluminum Pipe 30 mm Aluminum Pipe 31.75 mm Aluminum Pipe 33 mm Aluminum Pipe 36 mm Aluminum Pipe 38.1 mm Aluminum Pipe 39 mm Aluminum Pipe 42 mm Aluminum Pipe 45 mm Aluminum Pipe

50 mm Aluminum Pipe 55 mm Aluminum Pipe 60 mm Aluminum Pipe 65 mm Aluminum Pipe 70 mm Aluminum Pipe 75 mm Aluminum Pipe 80 mm Aluminum Pipe 90 mm Aluminum Pipe 100 mm Aluminum Pipe 110 mm Aluminum Pipe 120 mm Aluminum Pipe 130 mm Aluminum Pipe 140 mm Aluminum Pipe 150 mm Aluminum Pipe 160 mm Aluminum Pipe 165 mm Aluminum Pipe 180 mm Aluminum Pipe 190.5 mm Aluminum Pipe 210 mm Aluminum Pipe 228 mm Aluminum Pipe 250 mm Aluminum Pipe 305 mm Aluminum Pipe



Aluminium Pipe Chemical Composition

ALUMINIUM Alloy	% Si	% Mg	% Mn	% Cu	% Fe	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Max	0.05 Max	0.05 Max	0.05 Max	0.40 Max	–	0.07 Max	0.05 Max	–	99.5 Min
EN AW-1070 A	0.20 Max	0.03 Max	0.03 Max	0.03 Max	0.25 Max	–	0.07 Max	0.03 Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Aluminium Pipe Mechanical Properties

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6

Aluminum Alloy Heat Treatment Temper Designations for Pipes
Basic Aluminum Heat Treatment Designations
F As Fabricated
O Annealed
H Strain Hardened
W Solution Heat Treated
T Solution Heat Treated
Heat Treating T Temper Codes for Aluminium Pipe
T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
T4 – Solution heat treated, and naturally aged to a substantially stable condition.
T5 – Cooled from an elevated temperature shaping process then artificially aged.
T6 – Solution heat treated then artificially aged.
T7 – Solution heat treated then overaged/stabilized.
T8 – Solution heat treated, cold worked, then artificially aged.
T9 – Solution heat treated, artificially aged, then cold worked.
T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.
Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

H Temper Strain Hardening Codes for Aluminium Pipe
H1 – Strain hardened only
H2 – Strain hardened and partially annealed
H3 – Strain hardened and stabilized
H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.
