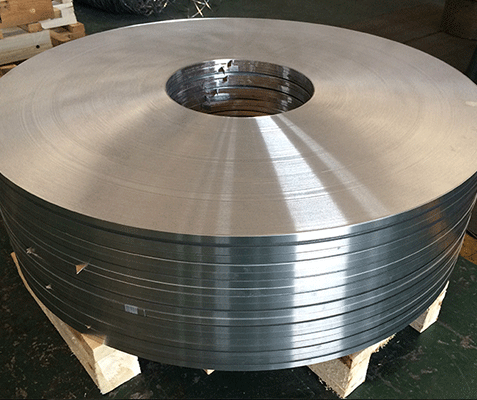

Thin Aluminum Strips

A finished Aluminium product such as strip which has been wound or coiled after rolling. These Aluminium Strips are available in Al 99.5 and E-Al 99.7 pure aluminium 1050, 1060, 1070, 1100, 1145, 1200, 1350, 2024, 3003, 3004, 3005, 3104, 5005, 5050, 5052, 5056, 5182, 5252, 5657, 5754, 6061, 7075, 8006, 8011, 8079, 9020. Re-rolled aluminum strip available in a wide range of precise thickness and width capabilities for consistent and tight gauge tolerances.

Aluminium Strip ASTM B209, ASTM B928

Aluminium Alloy No.	Thickness	Width	Length	Temper
	(mm)	(mm)	(mm)
A1050, A1060, A1070, A1100	0.2-100	20-2200	20-8000	O, H12, H22, H14, H16, H18, H24, H26, etc
A3003, A3105, A3004	0.2-100	20-2200	20-8000	O, H14, H18, H24, etc
A5052 , A5005, A5083, A5754	0.2-100	20-2200	20-8000	O, H18, H24, H32, H34, H111, H112 , etc
A6061, A6082, A6063	0.2-200	20-2200	20-8000	T4, T6, T651, etc
A8011	0.2-100	20-2200	20-8000	O, H12, H22, H14, H16, H18, H24, H26, etc



MOQ: 1 ton	2.5 tons
Payment term: L/C at sight or 30% TT as deposit and the balance paid against copy of B/L.	L/C at sight or 30% TT as deposit and the balance paid against copy of B/L
Delivery Time: Immediately from stock.	7 days after 30% TT payment or receiving L/C copy
Kind attention: Specifications can be customized as the customer’s requirements.

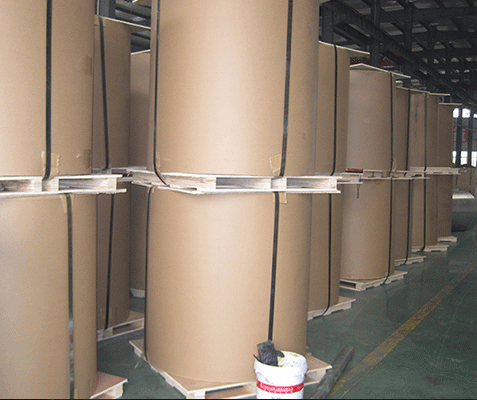

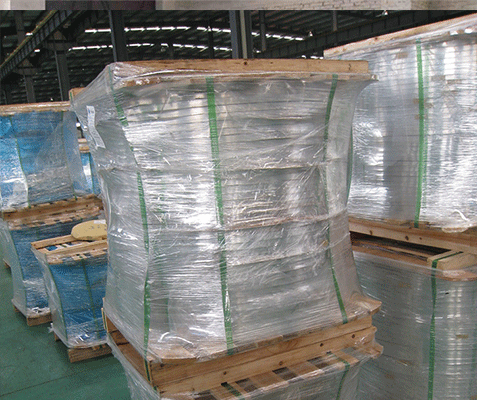

Packing : Export wooden pallets. The bundle wegiht not exceed 2MT. Loading:by 1x20GP

The inner size of container is below

• 20ft GP: 5.8m(length) x 2.13m (width) x 2.18m(high) about 24-26CBM, 23MTS
• 40ft GP: 11.8m(length) x 2.13m (width) x 2.18m(high) about 54CBM, 27MTS
• 40ft HG: 11.8m(length) x 2.13m (width) x 2.72m(high) about 68CBM, 27MTS
• Standards:ASTM-B209. EN573-1, GB/T3880.1-2006

Quality of material
totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set

Application
Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective devices etc.

TEMPERS

• Tempers produced in 1050, 1100 and 3003 alloys:
  • -0- (dead soft), H12, H14, H16 and H18
• Tempers produced in 3004 and 5052 alloys:
  • -0- (dead soft), H32, H34, H36 and H38
• Tempers produced in 5182 alloy:
  • -0- (soft), other tempers upon request
• Tempers produced in 6061 alloy:Other “in between” tempers can also be provided as needed
  • -0- (soft), T4, T6


Product Description

Standard	ASTM, ASME, AMS, ASTM B209M, GB/T 3191, JIS H4040, ASTM B209, AMS QQ-A-200/9
Aluminium Strip Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium Strip sizes	Diameter:0.1-600mm,etc
Aluminium Strip Length	1-12m, Random, Fix & Cut Length or as per clients’ requirement
Aluminium Strip	Bright, Polish & Black
Aluminium Strip Surface	Anodized, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved, Prepainted, Checkered, Embossed, Polished, Mirror Finished, Galvanized, Anodized, Bright, Brushed, Sand Blasted, Perforated, Color Coated
Aluminium Solid Strip Delivery Time	10-30 days after receiving the prepayment
Aluminium Strip Packaging Details	Export standard package: bundled wooden box, suit for all kinds of transport or be required.
ASTM B209 Aluminium Strip Outer packing	Export standard, wooden pallet
Manufacturer of	Aluminium Strip Grade 19000 Aluminium Strip Grade 19500 Aluminium Strip Grade 24345 Aluminium Strip Grade 24534 Aluminium Strip Grade 31000 Aluminium Strip Grade 52000 Aluminium Strip Grade 53000 Aluminium Strip Grade 54300 Aluminium Strip Grade 65032 Aluminium Strip Grade 63400 Aluminium Strip Grade 64430 Aluminium Strip Grade 74530 1100 Aluminum Strip 1050 Aluminum Strip Aluminium 2014 T6 Strip Aluminium 2017 Strip 2024 Aluminum Strip 3003 H14 Aluminum Strip 5052 Aluminum Strip 5086 Aluminum Strip 5083 Aluminum Strip 5754 Aluminium Strip 6061 Aluminum Strip 6061, HE 20 Aluminium Strip 6082 T6 Aluminum Strip 6082, HE 30 Aluminium Strip Aluminum Alloy 6351 T6 Strip Aluminium 6063 Strip 6101-T6 Aluminum Strip Aluminium Alloy 6066 Strip 6005 Aluminum Strip Aluminum 7039 Strip 7075 Aluminum Strip Aluminum 7075 T6 Strip 7050 Aluminum Strip LM2 Aluminium Strip LM6 Aluminum Strip

Material

	ASTM	GB	JIS
1000 Series	1100, 1200, 1230, 1035, 1235, 1435, 1040, 1045, 1145, 1345, 1050, 1350, 1450, 1060, 1260, 1065, 1070, 1080, 1085, 1185, 1285, 1188, 1090, 1193, 1199	1A99, 1A97, 1A95, 1A93, 1A90, 1A85, 1A80, 1A80A, 1070, 1070A, 1370, 1060, 1050, 1050A, 1A50, 1350, 1145, 1035, 1A30, 1100, 1200, 1235	1050, 1060, 1070, 1080, 1085, 1100, 1200, 1N00, 1N30, 1N90, 1N99
2000 Series	2008, 2009, 2010, 2011, 2111, 2012, 2014, 2214, 2017, 2117, 2018, 2218, 2618, 2219, 2319, 2419, 2519, 2024, 2124, 2224, 2324, 2424, 2524, 2025, 2034, 2036, 2037, 2038, 2048, 2080, 2090, 2094, 2095, 2195, 2097, 2197, 2297	2A01, 2A02, 2A04, 2A06, 2A10, 2A11, 2B11, 2A12, 2B12, 2A13, 2A14, 2A16, 2B16, 2A17, 2A20, 2A21, 2A25, 2A49, 2A50, 2B50, 2A70, 2B70, 2A80, 2A90, 2004, 2011, 2014, 2014A, 2214, 2017, 2017A, 2117, 2218, 2618, 2219, 2024, 2124	2011, 2014, 2017, 2018, 2024, 2025, 2117, 2218, 2219, 2618, 2N01
3000 Series	3002, 3102, 3003, 3303, 3004, 3104, 3204, 3005, 3105, 3006, 3007, 3307, 3009, 3010, 3011, 3015, 3016, 3028, 3030	3A21, 3003, 3103, 3004, 3005, 3105	3003, 3004, 3005, 3104, 3105, 3203, 3N03, 3N23
4000 Series	4004, 4104, 4008, 4009, 4010, 4011, 4013, 4014, 4032, 4043, 4343, 4643, 4044, 4045, 4145, 4047, 4147, 4048	4A01, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A	4004, 4005, 4032, 4045, 4047, 4104, 4343, 4N43, 4N45
5000 Series	5005, 5205, 5006, 5010, 5016, 5017, 5025, 5040, 5042, 5043, 5349, 5050, 5250, 5051, 5151, 5351, 5451, 5052, 5252, 5352, 5652, 5154, 5254, 5454, 5554, 5654, 5754, 5954, 5056, 5356, 5456, 5556, 5257, 5357, 5457, 5557, 5657, 5059, 5180, 5082, 5182, 5083, 5183, 5086, 5186, 5091	5A01, 5A02, 5A03, 5A05, 5B05, 5A06, 5B06, 5A12, 5A13, 5A30, 5A33, 5A41, 5A43, 5A66, 5005, 5019, 5050, 5251, 5052, 5154, 5154A, 5454, 5554, 5754, 5056, 5356, 5456, 5082, 5182, 5083, 5183, 5086	5005, 5052, 5056, 5082, 5083, 5086, 5154, 5182, 5183, 5254, 5356, 5454, 5554, 5556, 5652, 5654, 5N01, 5N02
6000 Series	6101, 6201, 6301, 6003, 6004, 6005, 6005A, 6105, 6205, 6006, 6206, 6306, 6007, 6009, 6010, 6110, 6011, 6111, 6013, 6113, 6019, 6020, 6022, 6151, 6351, 6951, 6053, 6253, 6060, 6160, 6061, 6261, 6162, 6262, 6063, 6463, 6763, 6963, 6066, 6069, 6070, 6091, 6092	6A02, 6B02, 6A51, 6101, 6101A, 6005, 6005A, 6351, 6060, 6061, 6063, 6063A, 6070, 6181, 6082,	6061, 6063, 6101, 6151, 6N01
7000 Series	7004, 7005, 7008, 7108, 7011, 7016, 7116, 7021, 7029, 7129, 7229, 7031, 7032, 7033, 7039, 7046, 7049, 7149, 7249, 7349, 7050, 7150, 7055, 7060, 7064, 7068, 7072, 7075, 7175, 7475, 7076, 7277, 7178, 7090, 7093	7A01, 7A03, 7A04, 7A05, 7A09, 7A10, 7A15, 7A19, 7A31, 7A33, 7A52, 7003, 7005, 7020, 7022, 7050, 7075, 7475	7003, 7050, 7072, 7075, 7N01

Aluminium Strip Chemical Composition

Grade	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Al
1050	0.250	0.400	0.050	0.050	0.050	–	–	0.050	99.50
1060	0.250	0.350	0.050	0.030	0.030	–	–	0.050	99.60
1070	0.200	0.250	0.040	0.030	0.030	–	–	0.040	99.70
1100	Si+Fe:0.95		0.05-0.2	0.050	–	–	0.100	–	99.00
1200	Si+Fe:1.00		0.050	0.050	–	–	0.100	0.050	99.00
1235	Si+Fe:0.65		0.050	0.050	0.050	–	0.100	0.060	99.35
3003	0.600	0.700	0.05-0.2	1.0-1.5	–	–	–	0.100	remains
3004	0.300	0.700	0.250	1.0-1.5	0.8-1.3	–	–	0.250	remains
3005	0.600	0.700	0.250	1.0-1.5	0.20-0.6	0.100	–	0.250	remains
3105	0.600	0.700	0.300	0.30-0.8	0.20-0.8	0.200	–	0.400	remains
3A21	0.600	0.700	0.200	1.0-1.6	0.050	–	–	0.10	remains
5005	0.300	0.700	0.200	0.200	0.50-1.1	0.100	–	0.250	remains
5052	0.250	0.400	0.100	0.100	2.2-2.8	0.15-0.35	–	0.100	remains
5083	0.400	0.400	0.100	0.40-1.0	4.0-4.9	0.05-0.25	–	0.250	remains
5154	0.250	0.400	0.100	0.100	3.1-3.9	0.15-0.35	–	0.200	remains
5182	0.200	0.350	0.150	0.20-0.50	4.0-5.0	0.100	–	0.250	remains
5251	0.400	0.500	0.150	0.1-0.5	1.7-2.4	0.150	–	0.150	remains
5754	0.400	0.400	0.100	0.500	2.6-3.6	0.300	–	0.200	remains
6061	0.40-0.8	0.700	0.15-0.40	0.150	0.8-1.2	0.04-0.35	–	0.250	remains
6063	0.20-0.6	0.350	0.100	0.100	0.45	0.100	–	0.100	remains
6082	0.7-1.3	0.500	0.100	0.40-1.0	0.6-1.2	0.250	–	0.200	remains
6A02	0.50-1.2	0.500	0.20-0.6	Or Cr0.15-0.35	0.45-0.9	–	–	0.200	remains
8011	0.50-0.9	0.6-1.0	0.100	0.200	0.050	0.050	–	0.100	remains

Aluminium Strip Mechanical Properties

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6
