PPGI & PPGL Sheet Coating

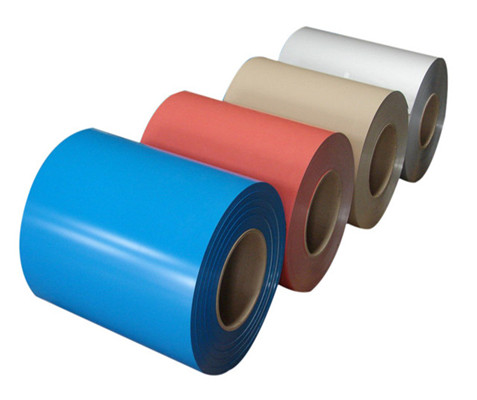

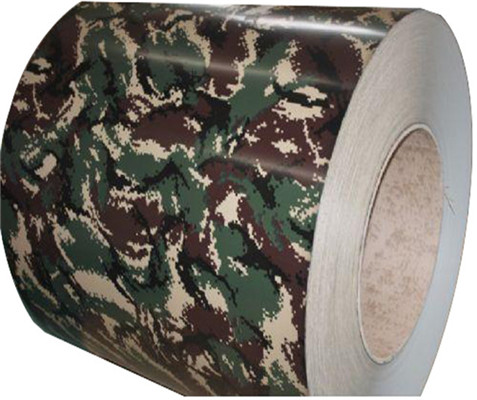

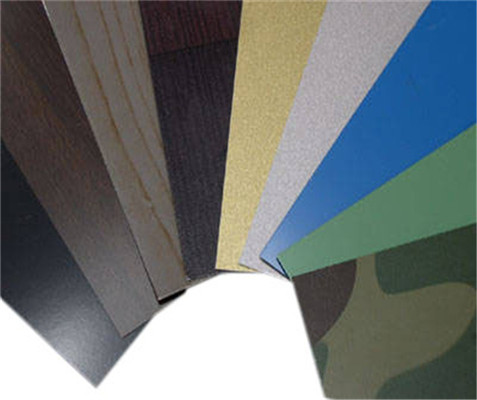

Usually the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print, camouflage, brick.

PPGI Production Process Flow Chart

Unrolling → Stitching machine → Entrance loop → Pretreatment → Initial coating → Bake → Cool down → Fine coating → Bake → Embossed film → Export loop → Inspection station → Cut → Coiling
In the above process, if the cleaning degreasing process is not handled well, the adhesion of the primer of the color coated plate to the galvanized sheet is not good, and it is easy to cause the top coat of the color coated steel coil to fall off during the press forming process.


Coating primer	Top paint coating
1)  Epoxy primer, good adhesion, water resistance, alkali resistance, chemical corrosion resistance, poor single toughness. 2)  Polyester primer, good adhesion, good flexibility, sensitive to humid environment, chemical resistance is not as good as epoxy primer. 3)  Acrylic primer, good adhesion, good toughness and high pretreatment requirements. 4)  polyurethane primer, chemical resistance, abrasion resistance, durability, toughness	1)  Polyester resin, good adhesion, molding and outdoor durability.
	2)  Silicon Modified Polyester (SMP)
	3)  High weather resistant polyester (HDP)
	4)  Polyvinyl fluoride (PVC)
	5)  Polyvinylidene fluoride/fluorocarbon (PVDF) It has good formability and color retention, good outdoor durability and powder resistance, solvent resistance, limited color and high price.



Characteristics

Color Coated Steel Feature Excellent Decorativeness, Bendability, Corrosion Resistance, Coating Adhesion And Color Fastness.They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation, Conservation Of Energy And Resistance To Contamination. Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti-Scratch Qualities.Can Be Produced In Various Colors, And Has Credible Quality And Can Be Mass-Produced Economically.

Application:

1. Outdoor: Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth
2. Indoor : Door , doorcase , light steel roof structure , folding screen , elevator , stairway , vent gutter
