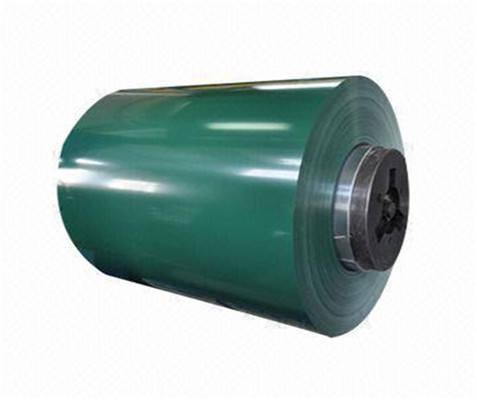

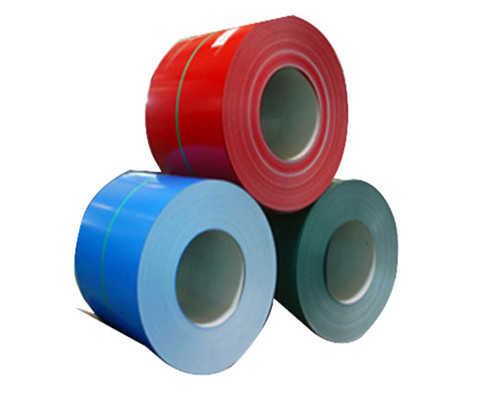

SGCC Color-coated Galvanized Steel Coil

Width: 600-1, 250mm
*Thickness: 0.14-0.8mm Thickness tolerance: +/-0.02mm
*Coil ID: 508mm&610mm

*Coil Weight: 9 tons max
*Color: All RAL color or customized

*Grade: SGCC
*Base Material: Galvanized Steel Coil.
*Al-Zn coating: 30-200g/sq. M. Or can be provided as clients' requirements
*Top side: 15-25 microns primer polyester
*Back side: 5-8 microns primer epoxy


Back painting:	5-7 mic. EP
Color:	According to RAL standard
commodity	Color-coated Galvanized Steel Coil      (PPGI/ PPGL)
Techinical Standard:	JIS G3302-1998,       EN10142/10137, ASTM A653
grade	TSGCC, TDX51D  /    TDX52D  / TS250, 280GD
Types:	For general  /    drawing    use
Thickness	0.14-1.0mm(0.16-0.8mm is the most advantage thickness))
Width	Width: 610/724/820/914/1000/1200/1219/1220/1250mm
Type of  coating:	PE, SMP, PVDF
Zinc coating	Z60-150g/m2  or AZ40-100g/m2
Top painting:	5 mic. Primer + 15 mc. R. M. P.
ID coil	508mm / 610mm

Application:
1. Buildings And Constructions  Workshop, Warehouse, Corrugated Roof And Wall, Rainwater, Drainage Pipe, Roller Shutter Door

2. Electrical ApplianceRefrigerator, Washer, Switch Cabinet, Instrument Cabinate, Air Conditioning, Micro-Wave Oven, Bread Maker

3. FurnitureCentral Heating Slice, Lampshade, Book Shelf

4. Carrying TradeExterior Decoration Of Auto And Train, Clapboard, Container,Lsolation Board

5. Others Writing Panel, Garbage Can, Billboard, Timekeeper, Typewriter, Instrument Panel, Weight Sensor, Photographic Equipment.
