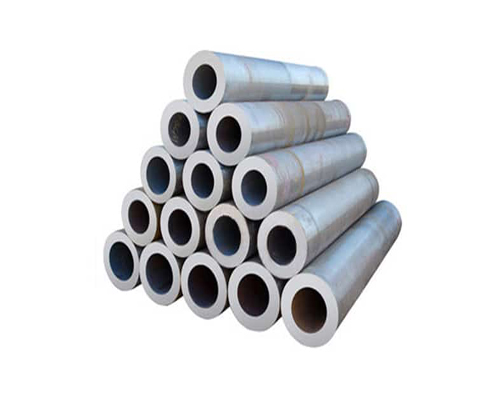

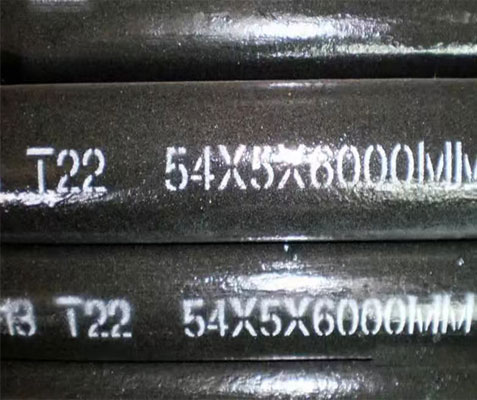

The ASTM A213 T22 seamless boiler tubes are commonly used in high-temperature applications such as power generation, chemical processing, and oil and gas refining. They are designed to withstand high-pressure and high-temperature environments, making them suitable for use in boilers, superheaters, and heat exchangers.The T22 alloy steel used in the tubes contains elements such as chromium, molybdenum, and tungsten, which provide high-temperature strength, corrosion resistance, and wear resistance. The tubes are manufactured by a seamless process and are typically heat treated to enhance their mechanical properties.
Description:
|
Executive Standard |
ASTM A213 |
|
|
Materials |
T2, T5, T5b, T5c, T9, T11, T12,T17, T21, T22, T23, T24, T36,T91, T92, T122, T911 |
|
|
Size |
Outer Diameter |
12.7 mm – 114.3 mm |
|
Wall Thickness |
0.8mm -15mm |
|
|
Length |
Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request |
|
|
Ends |
Plain end/Beveled,protected by plastic caps on both ends,cut quare, grooved, threaded and coupling,etc |
|
|
Surface Treatment |
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating |
|
|
Technical Methods |
Cold-drawn/Hot-expanded |
|
|
Testing Methods |
Eddy current testing, Hydrostatic testing or Ultrasonic examination, NDT and also with chemical and physical property inspection |
|
|
Packaging |
Small pipes in bundles with strong steel strips,large in loose pieces; Covered with plastic woven bags; Suitable for lifting operation; Loaded in 40ft or 20ft container or in bulk Also according to customer's requests |
|
|
Application |
boiler,superheater,and heat-exchanger tubes |
|
|
Certificates |
API ISO PED |
|
|
Third Party Inspection |
SGS BV TUV etc. |
|
Grade and Chemical Composition(％):
|
Grade |
C |
Mn |
P≤ |
S≤ |
Si |
Cr |
Mo |
V≥ |
|
T11 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50-1.00 |
0.50-1.00 |
1.00-1.50 |
|
|
T12 |
0.05-0.15 |
0.30-0.61 |
0.025 |
0.025 |
≤0.50 |
0.80-1.25 |
0.44-0.65 |
|
|
T13 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
|
|
T2 |
0.10-0.20 |
0.30-0.61 |
0.025 |
0.025 |
0.10-0.30 |
0.50-0.81 |
0.44-0.65 |
|
|
T5 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
|
|
T5b |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
1.00-2.00 |
4.00-6.00 |
0.45-0.65 |
|
|
T5c |
≤0.12 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
|
|
T9 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.25-1.00 |
8.00-10.00 |
0.9-1.0 |
|
|
T22 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
|
|
T91 |
0.08-0.12 |
0.30-0.60 |
0.020 |
0.010 |
≤0.50 |
8-9.50 |
0.85-1.05 |
0.18-0.25 |
|
T92 |
0.07-0.13 |
0.30-0.60 |
0.020 |
0.010 |
≤0.50 |
8-9.50 |
0.3-0.60 |
0.15-0.25 |
|
T21 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
2.65-3.35 |
0.80-1.06 |
Mechanical Properties:
|
Standard |
Steel grade |
Tensile(MPa) |
Yield(MPa) |
Elongate(%) |
Hardenss |
|
20MnG |
20MnG |
≥415 |
≥240 |
≥22 |
|
|
25MnG |
25MnG |
≥485 |
≥275 |
≥20 |
|
|
15CrMoG |
15CrMoG |
440～640 |
≥235 |
≥21 |
|
|
12Cr2MoG |
12Cr2MoG |
450～600 |
≥280 |
≥20 |
|
|
12Cr1MoVG |
12Cr1MoVG |
470～640 |
≥255 |
≥21 |
|
|
12Cr2MoWVTiB |
12Cr2MoWVTiB |
540～735 |
≥345 |
≥18 |
|
|
10Cr9Mo1VNb |
10Cr9Mo1VNb |
≥585 |
≥415 |
≥20 |
|
|
ASME SA210 |
SA210A-1 |
≥415 |
≥255 |
≥30 |
≤143HB |
|
SA210C |
SA210C |
≥485 |
≥275 |
≥30 |
≤179HB |
|
ASME SA213 |
SA213 T11 |
≥415 |
≥205 |
≥30 |
≤163HB |
|
SA213 T12 |
SA213 T12 |
≥415 |
≥220 |
≥30 |
≤163HB |
|
SA213 T22 |
SA213 T22 |
≥415 |
≥205 |
≥30 |
≤163HB |
|
SA213 T23 |
SA213 T23 |
≥510 |
≥400 |
≥20 |
≤220HB |
|
SA213 T91 |
SA213 T91 |
≥585 |
≥415 |
≥20 |
≤250HB |
|
SA213 T92 |
SA213 T92 |
≥620 |
≥440 |
≥20 |
≤250HB |
|
DIN17175 |
ST45.8/Ⅲ |
410～530 |
≥255 |
≥21 |
/ |
|
15Mo3 |
15Mo3 |
450～600 |
≥270 |
≥22 |
|
|
13CrMo44 |
13CrMo44 |
440～590 |
≥290 |
≥22 |
|
|
10CrMo910 |
10CrMo910 |
480～630 |
≥280 |
≥20 |
Permitted tolerance for OD:
|
OD |
Plus tolerance(+) |
Minus tolerance (-) |
|
10.29—48.3 |
0.4 |
0.4 |
|
<48.3—-≤114.3 |
0.79 |
0.79 |
|
<114.3—≤219.1 |
1.59 |
0.79 |
|
<219.1—≤323.9 |
2.38 |
0.79 |
|
<323.9 |
±1% |
|
Applications:
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
