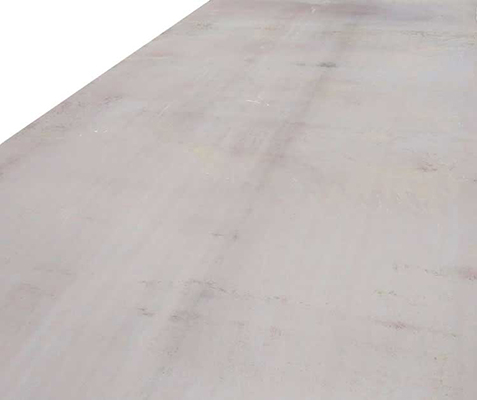

ASME SA515 GR.60 Pressure vessel steel plate
ASME SA515 GR.60 Pressure vessel steel plate
ASME SA515 GR.60 Pressure vessel steel plate
ASME SA515 GR.60 Pressure vessel steel plate

ASME SA515 GR.60 Pressure vessel steel plate

ASME A515 standard is mainly used for carbon-silicon steel plates for medium and high temperature welding boilers and other pressure vessels.
SA515 GR.60 Pressure vessel steel plate Specification :

SA 515 GR.60 Boiler Quality Plates are free from all types of leakages of any type of liquid element that is of use in dissimilar kinds of practices. This kind of product is mounting the application performances and is well well-liked for the surface finishes of the pressure vessel or various purposes in which these plates as the fabrication material can be made in use. These products are showing very good performance for the temperature that is down to temperature 1600 degrees F. The right annealing temperature of the type of plates designed is 1900 deg F approximately.Also, it is having the capability of a proclivity for bearing the larger pressure and it can easily make the product fully free from all kinds of elongation procedure. The product is used in different high temperatures. Also it can be used in the process that requires bigger pressure. The product is showing a very good low rate of corrosion and an admirable hideous to SCC.

SA 515 GR.60 Pressure Vessel Steel Plates today are found used in several applications. Some of them are off-shore oil drilling industries, petrochemicals, pharmaceutical equipment, specialty chemicals, power generation, gas processing. Also, it is found used in applications like pharmaceuticals, heat exchangers, seawater equipment, pulp & paper industry, condensers, chemical equipment, etc. SA 515 GR.60 PLATES are well tested at our industry for checking its quality. The tests done are toughness tests, macro test, micro test, flaring test, flattening test, mechanical test and so on. The copies of documents attached and offered are inclusive of fumigation certificate, commercial invoice, packaging list, heat treatment chart, QAP, guarantee letter and etc.

Chemical Composition and Mechanical Properties:
SA515 grade 60 Chemical Composition
Grade The Element Max (%)
C Mn P S Si
SA515 grade 60 0.24-0.31 0.98 0.035 0.035 0.13-0.45

Grade SA515 grade 60 Mechanical Property
Thickness Yield Tensile Elongation
SA515 grade 60 mm Min Mpa Mpa Min  %
200 220 415-550 21
50 25


General Requirements and Ordering Information

  • Testing and retesting methods, procedures;
  • Permissible tolerances in dimensions and mass, quality;
  • Repair of defects;
  • Marking, loading and ordering information;
  • Coils are excluded from this specifcation in case cutted to the plates form.


Material and Manufacture
The steel shall be killed and made to a coarse austenitic grain size practice.

Heat Treatment
ASME A515 plates thickness in 50 mm [2 inch] thickness and under are normally supplied with as-rolled condition, unless it is ordered as requested.

Plates over 50 mm [2 in] in thickness shall be normalized.
