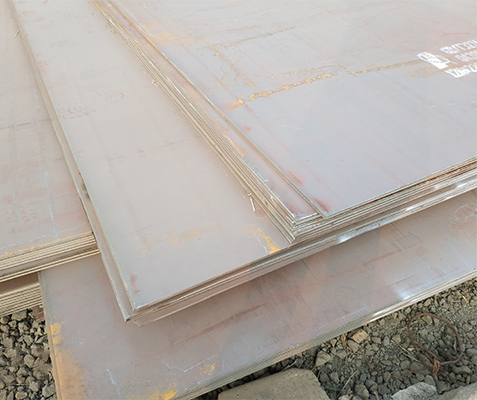

A572 steel
A572 steel
A572 steel
A572 steel

ASTM A572 steel

ASTM A572 Specification refers to High-Strength Low-Alloy Steel Plate for structural building, among the 5 steel grades of 42, 50, 55, 60 and 65, Grade 50 is one most common steel in applications where need more strength and less weight, use steel plate of this grade other than ordinary carbon steel will make the steel structure with same steel strength but lighter weight.
Product introduction
Steel Plate ASTM A572/A572M
ASTM A572 Specification refers to High-Strength Low-Alloy Steel Plate for structural building, among the 5 steel grades of 42, 50, 55, 60 and 65, Grade 50 is one most common steel in applications where need more strength and less weight, use steel plate of this grade other than ordinary carbon steel will make the steel structure with same steel strength but lighter weight.
Technical data
ASTM A572 Grade 65
C max Mn  max P max S max SI max
0.23 1.35 0.04 0.05 0.4
Yield Strength Mpa Tensile Strength Mpa Elongation % in 200mm Elongation % in 50mm
450 550 15 17

ASTM A572 Grade 60
C max Mn  max P max S max SI max
0.26 1.35 0.04 0.05 0.4
Yield Strength Mpa Tensile Strength Mpa Elongation % in 200mm Elongation % in 50mm
415 520 16 18

ASTM A572 Grade 55
C max Mn  max P max S max SI max
0.25 1.35 0.04 0.05 0.4
Yield Strength Mpa Tensile Strength Mpa Elongation % in 200mm Elongation % in 50mm
380 485 17 20

ASTM A572 Grade 50
C max Mn  max P max S max SI max
0.23 1.35 0.04 0.05 0.4
Yield Strength Mpa Tensile Strength Mpa Elongation % in 200mm Elongation % in 50mm
345 450 18 21

ASTM A572 Grade 42
C max Mn  max P max S max SI max
0.21 1.35 0.04 0.05 0.4
Yield Strength Mpa Tensile Strength Mpa Elongation % in 200mm Elongation % in 50mm
290 415 20 24
