Product introduction
EN10025-2 S235JR steel plate
EN10025-2 S235JR steel plate steel sheet low alloy and high strength.
Keywords: en10025-2 S235jr,s235jr steel,s235jr grade,s235jr material,s235jr steel plate,s235jr steel grade.
Adopt standard: EN10025-2
steel grade: S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S355JR, S355J0, S355J2, S355K2, S450J0

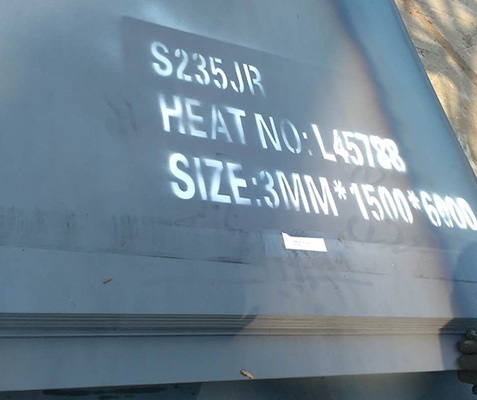

S235JR steel plate
S235JR, S235J0 and S235j2 steel is a structural steel grade which be used in riveted, bolted, or welded construction of bridges and buildings.
S symbol for structural steel
235 indication of the min specified yield strength for thickness of under 16mm.
JR symbol 20 temperature impact test.
J0 symbol 0 temperature impact test
J2 symbol -20 temperature impact test
This is common carbon steel plate in S235JR, S235J0 and S235J2 steel grade.
Gnee steel had many stock size in carbon steel plate, in ASTM A36, S235JR, S235J0, S235J2, SS400, ST37-2 and so on.
Gnee steel has many stock steel plate in carbon steel plate in following size.
Technical data
EN10025-2 S235JR STEEL PLATE Chemical composition
| Grade |
C % |
Si % |
Mn % |
P % |
S % |
N % |
Cu % |
| S235j0 |
0.19 |
– |
1.500 |
0.040 |
0.040 |
0.014 |
0.060 |
EN10025-2 S235JR STEEL PLATE Mechanical Property
| Grade |
Thickness(mm) |
Min Yield (Mpa) |
Tensile(MPa) |
Elongation(%) |
Min Impact Energy |
| S235j0 |
8mm-100mm |
235Mpa |
360-510Mpa |
21-26% |
0 |
27J |
| 101mm-200mm |
195Mpa |
340-500Mpa |
22% |
0 |
27J |
| 201mm-400mm |
175Mpa |
… |
21% |
0 |
27J |
| The min impact energy is longitudinal energy |
If you need them more, you could check them in our website of stock warehouse or contract us by email.
Our mill also supply steel grade in S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S355JR, S355J0, S355J2, S355K2, S450J0 steel plate of EN10025-2 standard.
If you have any order in this steel grade EN10025-2 S235JR STEEL PLATE from gnee steel, please inquiry us soon.
