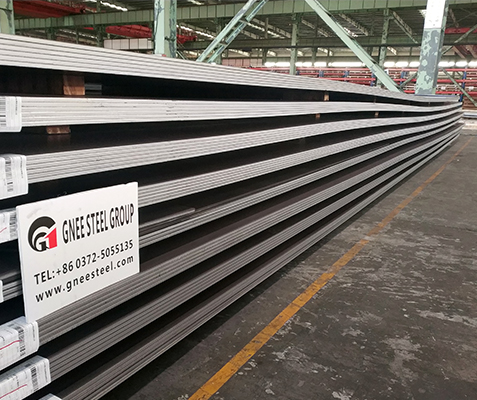

CCS Shipbuilding steel plate
CCS Shipbuilding Plate
CCS Shipbuilding Plate
CCS Shipbuilding Plate

CCS shipbuilding steel plate

CCS shipbuilding plate grade AQ DQ EQ FQ AH EH FH 36 40 47 51 63 70 chemical and mechanical properties
Product introduction
CCS Shipbuilding Plate

CCS Grade FQ70 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.18 0.55 1.60 0.020 0.020 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
690 770-940 14

CCS Grade EQ70 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.20 0.55 1.70 0.025 0.025 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
690 770-940 14

CCS Grade DQ70 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.21 0.55 1.70 0.035 0.035 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
690 770-940 14--16

CCS Grade AQ70 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.21 0.55 1.70 0.030 0.030 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
690 770-940 14

CCS Grade EQ63 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.20 0.55 1.70 0.025 0.025 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
620 720-890 15

CCS Grade FQ63 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.18 0.55 1.60 0.020 0.020 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
620 720-890 15

CCS Grade AQ63 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.21 0.55 1.70 0.030 0.030 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
620 720-890 15

CCS Grade EQ56 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.20 0.55 1.70 0.025 0.025 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
550 670-830 16

CCS Grade FQ56 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.18 0.55 1.60 0.020 0.020 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
550 670-830 16

CCS Grade AQ56 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.21 0.55 1.60 0.030 0.030 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
550 670-830 16

CCS Grade EQ51 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.20 0.55 1.70 0.025 0.025 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
500 610-770 16

CCS Grade FQ51 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.18 0.55 1.60 0.020 0.020 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
500 610-770 16

CCS Grade AQ51 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.21 0.55 1.70 0.030 0.030 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
500 610-770 16

CCS Grade EQ47 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.20 0.55 1.70 0.025 0.025 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
460 570-720 17

CCS Grade FQ47 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.18 0.55 1.60 0.020 0.020 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
460 570-720 17

CCS Grade AQ47 Shipbuilding Steel Plate

C max Si max Mn P max S max N max.
0.21 0.55 1.70 0.030 0.030 0.020
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
460 570-720 17

Technical data

CCS Grade EH40 Shipbuilding Steel Plate

C max Si max Mn P max S max Als Nb V Ti max. Cu max. Cr max. Ni max. Mo max. N max.
0.18 0.50 0.90-1.60 0.025 0.025 0.015 0.02-0.05 0.05-0.10 0.02 0.35 0.20 0.40 0.08 -
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
390 510-660 20

CCS Grade FH40 Shipbuilding Steel Plate

C max Si max Mn P max S max Als Nb V Ti max. Cu max. Cr max. Ni max. Mo max. N max.
0.16 0.50 0.90-1.60 0.020 0.020 0.015 0.02-0.05 0.05-0.10 0.02 0.35 0.20 0.80 0.08 0.009
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
390 510-660 20

CCS Grade AH40 Shipbuilding Steel Plate

C max Si max Mn P max S max Als Nb V Ti max. Cu max. Cr max. Ni max. Mo max. N max.
0.18 0.50 0.90-1.60 0.030 0.030 0.015 0.02-0.05 0.05-0.10 0.02 0.35 0.20 0.40 0.08 -
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
390 510-660 20

CCS Grade EH36 Shipbuilding Steel Plate

C max Si max Mn P max S max Als Nb V Ti max. Cu max. Cr max. Ni max. Mo max. N max.
0.18 0.50 0.90-1.60 0.025 0.025 0.015 0.02-0.05 0.05-0.10 0.02 0.35 0.20 0.40 0.08 -
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
355 490-630 21


CCS/E Normal Strength Max Chemical Composition in Hot-rolled

Element CCS E Max % Element CCS E Max %
C 0.21 Ni
Mn 0.60 Mo
Si 0.1-0.35 Al
S 0.035 Nb
P 0.035 V
Cu   Ti
Cr   N
Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
CCS/E Normal strength property in Hot-rolled
Grade Thickness Yield Strength Tensile Strength Elongation Impact Energy
(mm) MPa (min) MPa % (min) (KV J) (min)
        -20 degree
CCS E 8-240 235 400-520 22 27J

Note: the impact energy under less 50mm thickness; longitudinal min impact energy


CCS/D Normal Strength Max Chemical Composition in Hot-rolled


Element CCS D  Max % Element CCS D  Max %
C 0.21 Ni
Mn 0.60 Mo
Si 0.1-0.35 Al
S 0.035 Nb
P 0.035 V
Cu   Ti
Cr   N
Crack Sensitivity:  Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent:  Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

CCS/D Normal strength property in Hot-rolled


Grade Thickness Yield Strength Tensile Strength Elongation Impact Energy
(mm) MPa (min) MPa % (min) (KV J) (min)
        -20 degree
CCS D 8-240 235 400-520 22 27J

Note: the impact energy under less 50mm thickness; longitudinal min impact energy



CCS/B Normal Strength Max Chemical Composition in Hot-rolled


Element CCS B  Max % Element CCS B  Max %
C 0.21 Ni
Mn 0.80 Mo
Si 0.35 Al
S 0.035 Nb
P 0.035 V
Cu   Ti
Cr   N
Crack Sensitivity:  Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent:  Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

CCS/B Normal strength property in Hot-rolled


Grade Thickness Yield Strength Tensile Strength Elongation Impact Energy
(mm) MPa (min) MPa % (min) (KV J) (min)
        0 degree
CCS B 8-240 235 400-520 22 27J

Note: the impact energy under less 50mm thickness; longitudinal min impact energy



CCS/A Normal Strength Max Chemical Composition in Hot-rolled


Element CCS A Max % Element CCS A Max %
C 0.21 Ni
Mn 2.5*C MIN Mo
Si 0.50 Al
S 0.035 Nb
P 0.035 V
Cu   Ti
Cr   N

Crack Sensitivity:  Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent:  Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

CCS/A Normal strength property in Hot-rolled


Grade Thickness Yield Strength Tensile Strength Elongation Impact Energy
(mm) MPa (min) MPa % (min) (KV J) (min)
        20 degree
CCS A 8-240 235 400-520 22
Note: the impact energy under less 50mm thickness; longitudinal min impact energy
