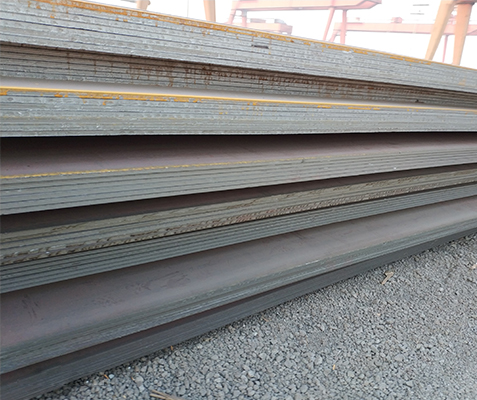

SMA490AW steel

SMA490AW is a type of low alloy steel that is designed to resist atmospheric corrosion. It is often used in structural applications such as bridges and buildings, as well as in railway vehicles and other industrial equipment.

Some of the key properties of SMA490AW include:

1.Corrosion resistance: SMA490AW steel is highly resistant to atmospheric corrosion, making it ideal for use in outdoor applications.
2.High strength: The steel has a minimum yield strength of 365 MPa and a minimum tensile strength of 490 MPa, making it a strong and durable material for structural applications.
3.Good toughness: SMA490AW steel has good toughness and ductility, allowing it to withstand harsh weather conditions and other forms of stress.
4.Weldability: The steel can be easily welded using common welding methods, making it suitable for use in a variety of construction applications.
5.Formability: SMA490AW steel can be easily formed and shaped to meet the specific requirements of different applications.

SMA490AW Weathering steel chemical composition

Grade	C ≤	Si	Mn ≤	P ≤	S ≤	Cu	Cr	Ni	Ce ≤
SMA490AW	0.18	0.15~0.65	1.40	0.035	0.035	0.30~0.50	0.45~0.75	0.05~0.30	-

SMA490AW Weathering resistant steel tensile property

Min Yield Strength ( MPa )						Tensile Strength	Elongation A%
Thickness of plates and sections (mm)
≤ 16	＞16- ≤ 40	＞40- ≤ 75	＞75- ≤ 100	＞100- ≤ 160	＞160- ≤ 200	490-610	15 min

SMA490AW steel delivery condition can be hot rolled, Cold rolled ,AR/CR/N/TMCP/T/QT as the customer request

Relate Steel Type

Steel Type	Standard	Country Code	C(%)	V(%)	Si(%)	Mn(%)	P(%)	S(%)	Cr(%)	Ni(%)	Cu(%)
SMA490AW	4269	CNS	≦0.18		0.15-0.65	≦1.40	≦0.035	≦0.035	0.45-0.75	0.05-0.39	0.30-0.50
SMA490AW	G3114	JIS	≦0.18		0.15-0.65	≦1.40	≦0.035	≦0.035	0.45-0.75	0.05-0.39	0.30-0.50
A588Gr.B	A588	ASTM	≦0.20	0.01-0.10	0.15-0.50	0.75-1.35	≦0.04	≦0.05	0.40-0.70	≦0.50	0.20-0.40



Steel Type	Yield stress (Mpa)	Tensile stress (Mpa)	Elongation (%)	Thick (mm)
SMA490AW	≧365	490-610	≧21	≦16
SMA490AW	≧365	490-610	≧21	≦16
A588Gr.B	≧345	≧485	≧21	≦100
