Home > Products > Silicon Steel
electrical transformer grain oriented silicon steel
electrical transformer grain oriented silicon steel
electrical transformer grain oriented silicon steel
electrical transformer grain oriented silicon steel
electrical transformer grain oriented silicon steel
electrical transformer grain oriented silicon steel

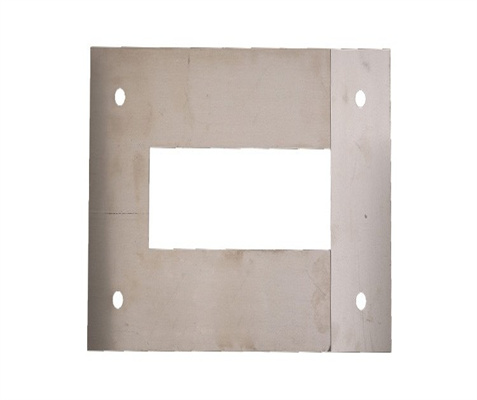

Electrical transformer grain oriented silicon steel

Grain-oriented silicon steel (Fe-Si steel; transformer steel; electrical steel) is a soft magnetic polycrystalline metallic alloy that is used as core material in electrical transformer cores and electrical motors.
Send E-mail
Chat Now
Products list
Gnee steel,steel supply from sky to sea are available,global reachable;
Contact us
Email : sale@gneesteel.com
Mobile: +86 15824687445 kelly
Tel: +86 372-5055135
Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.
Product introduction
Product introduction

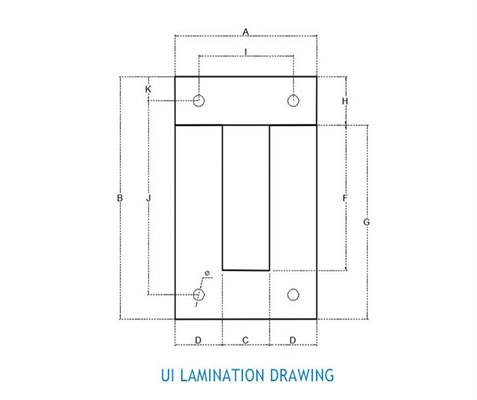

UI Size List

Specification Dimension for each part
GOODS A B C D F G H I J K Φ
UI-30B 90 150 30 30 90 120 30 60 120 15 8
UI-35B 105 175 35 35 105 140 35 70 140 17.5 8
UI-38B 114 190 38 38 114 152 38 76 152 19 8
UI-40B 120 200 40 40 120 160 40 80 160 20 10
UI-44B 132 220 44 44 132 176 44 88 176 22 8
UI-50B 150 250 50 50 150 200 50 100 200 25 8
UI-60B 180 300 60 60 180 240 60 120 240 30 13
UI-70B 210 350 70 70 210 280 70 140 280 35 12
UI-80B 240 400 80 80 240 320 80 160 320 40 14
UI-90B 270 450 90 90 270 360 90 180 360 45 14
UI-100B 300 500 100 100 300 400 100 200 400 50 14
