309 Stainless Steel Wire Mesh
309 Stainless Steel
Stainless Steel Wire Mesh
309 Stainless Steel Wire Mesh

309 Stainless Steel Wire Mesh

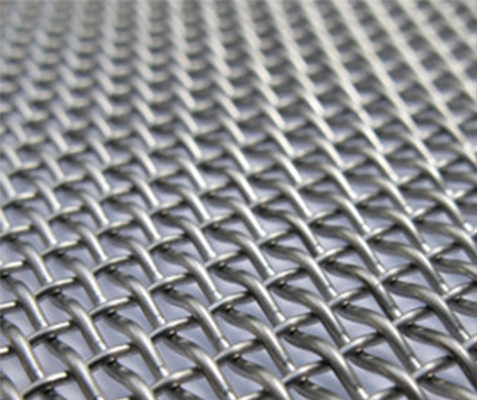

Type 309 stainless steel wire mesh is a heat resistant alloy useful in temperatures up to 1700°F.  When higher operating temperatures are required, higher nickel alloys (i.e. see SS310, SS330, Inconel® 600, Incoloy® 800) are used in place of Type 309 stainless steel. Given its high chromium (~23%) and nickel (~12%) composition, T-309 stainless steel is highly corrosion resistant, has excellent resistance to oxidation, has outstanding heat resistance, and provides good strength at both room and elevated temperatures.
Product information
Stainless Steel Grade 309 and 309S are austenitic chromium-nickel stainless steels that are frequently utilized for higher temperature applications. Because of their high chromium and nickel content, Alloys 309 and 309S are highly corrosion resistant, have greater resistance to oxidation, and magnificent heat resistance while giving good qualities at room and high temperatures.  The difference between Stainless Steel 309 and 309S is the carbon content. Alloy 309S has a substantially less carbon composition which reduces carbide precipitation and improves weldability. Characteristics
  • Maximum temperature of 1000°C in service in the air
  • Very good resistance to carburizing
  • Good weldability and formability
  • Excellent resistance to corrosion and oxidation
Applications
  • Heating elements
  • Aircraft and jet engine parts
  • Heat exchangers
  • Carburizing annealing products
  • Sulphite liquor handling equipment
  • Kiln liners
  • Boiler baffles
  • Refinery and chemical processing equipment
  • Auto exhaust parts
Technical data

Chemical Composition


Grade C Si P S Cr Mn Ni Fe
309 0.20 max 1.0 max 0.045 max 0.030 max 22.0 - 24.0 2.0 max 12.0 - 15.0 Remainder
309S 0.08 max 1.0 max 0.045 max 0.030 max 22.0 - 24.0 2.0 max 12.0 - 15.0 Remainder

Mechanical Properties

Grade Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation% in 2 inches
309 75 30 40
309S 70 25 40

Physical Properties
  309 309S Temperature in °C
Density 7.9 g/cm³ 8.03 g/cm³ Room
Specific Heat 0.12 Kcal/kg.C 0.12 Kcal/kg.C 22°
Melting Range 1399 - 1454 °C 1399 - 1454 °C -
Modulus of Elasticity 200 KN/mm² 200 KN/mm² 22°
Electrical Resistivity 78 µΩ.cm 78 µΩ.cm Room
Coefficient of Expansion 14.9 µm/m °C 14.9 µm/m °C 20 - 100°
Thermal Conductivity 15.6 W/m -°K 15.6 W/m -°K 20°

FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
