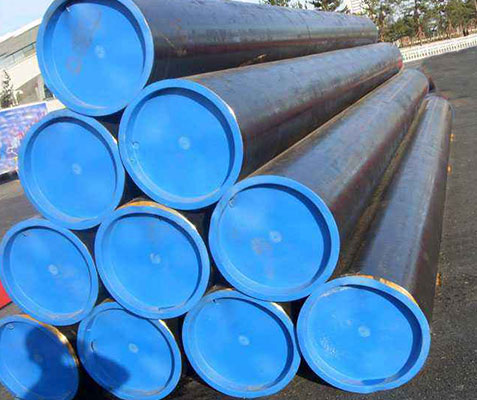

API 5L X80 is a high strength carbon steel pipe that meets the API 5L specification. It is commonly used for hydrocarbon transportation in the oil and gas industry, as well as other industries such as water supply, construction and structural applications.
The X80 designation indicates that the pipe has a minimum yield strength of 80,000 psi (550 MPa) and a minimum tensile strength of 95,000 psi (655 MPa). This high strength is achieved through the addition of alloying elements such as manganese, silicon and chromium.
The pipe is manufactured using an electrical resistance welding (ERW) process, in which the edges of flat steel strips are heated and then welded together to form a seam. The pipe is then passed through a series of rolls to give it its final shape and size. The welding process produces a strong, durable joint, and the use of high-strength steel ensures that the pipe can withstand high pressures and stresses.
Specification
| Api 5l X80 Psl2 Sizes | Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness - Schedule 10 through 160, STD, XS, XXS. |
| Api 5l X80 Erw Pipe Standard | API 5L X80 (Specification for Line Pipe - ANSI/API specification 5L - 44th Edition, October 1, 2007) |
| Product Specification Level (PSL) | API 5L X80 PSL 2 API 5L X80 PSL 1 |
| API 5L X80 Line Pipe Length | Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths |
| Api Grade X80 Pipe End | Plain, Bevel, Screwed, Threaded |
| Testing and Inspection Reports | EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Mill TC EN 10204 3.1, NABL Approved Lab, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate |
| API 5L X80 Pipes Type | Seamless / ERW / Welded / Fabricated / CDW |
ASTM API 5L X80 Seamless and Welding Steel Tube Mechanical Properties:
|
Grade |
Pipe body of seamless and welded pipes |
Weld seam of EW, LW, SAW and COW pipe |
|||
|
Yield strength |
Tensile strength |
Tensile strength |
|||
|
Minimun |
Maximum |
Minimun |
Maximum |
||
|
ASTM API 5L X80 |
555 (80 500) |
705 (102 300) |
625 (90 600) |
825 (119 700) |
625 (90 600) |
X80 Pipe yield strength
| Grade | Permissible yield point ratio | Yield Strength MPa(min) | Tensile Strength MPa | Elongation % (min) |
| X80 | = 0.90 | 555 | 625 – 700 | 20 |
