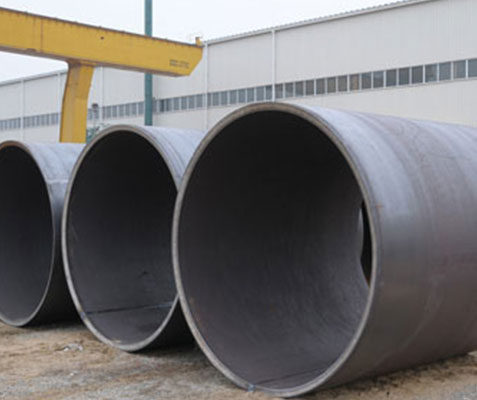

LSAW Steel Pipe

LSAW Pipe is taking the steel plate as raw material, mold it by the molding machine, then do double-sided submerged arc welding. Through this process the LSAW steel pipe will get excellent ductility, weld toughness, uniformity, plasticity and great sealing.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Product introduction Technical data

Product introduction

LSAW (Longitudinal Submerged Arc Welding) steel pipe is a type of welded steel pipe used for conveying fluids like oil, gas, and water. It is made by using a single steel plate as raw material, which is then formed into a cylindrical shape and welded longitudinally using submerged arc welding techniques.

The LSAW process involves feeding the steel plate through a series of rollers that gradually form it into a cylindrical shape. The edges of the plate are then prepared for welding, and the pipe is submerged in a flux material to protect it from oxidation during welding.

Application: Used for Fluids Transmission, Structural Support in Industrial Construction
Specification: OD: 406mm ~ 1422 mm
WT: 6.4mm ~ 44.5mm
LENGTH: 5mtr ~ 12mtr
Standard & Grade: ASTM A53 Grade A/B/C
Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

LSAW Steel Pipe Dimension

Out Diameter		Wall Thickness(mm)
Inch	mm	6.4	7.1	7.9	9.53	12.7	14.3	15.9	19.1	22.2	25.4	28.6	31.8	34.9	38.1	41.3	44.5
16	406.4
18	457
20	508
22	559
24	610
26	660
28	711
30	762
32	813
34	864
36	914
38	965
40	1016
42	1067
44	1118
46	1168
48	1219
52	1321
56	1422
60	1524
64	1626

Technical data

Olerance of Outside Diameter and Wall Thickness

Types	Standard
Types	SY/T5040-2000	SY/T5037-2000	SY/T9711.1-1977	ASTM A252	AWWA C200-97	API 5L PSL1
Tube end OD deviation	±0.5%D	±0.5%D	-0.79mm～+2.38mm	<±0.1%T	<±0.1%T	±1.6mm
Wall thickness	±10.0%T	D<508mm, ±12.5%T	-8%T～+19.5%T	<-12.5%T	-8%T～+19.5%T	5.0mm<T<15.0mm, ±0.11
Wall thickness	±10.0%T	D>508mm, ±10.0%T	-8%T～+19.5%T	<-12.5%T	-8%T～+19.5%T	T≥15.0mm, ±1.5mm

Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
Standard	Grade	C	Mn	Si	S	P	Yield Strength(Mpa)	Tensile Strength(Mpa)
GB/T700-2006	A	0.22	1.4	0.35	0.050	0.045	235	370
	B	0.2	1.4	0.35	0.045	0.045	235	370
	C	0.17	1.4	0.35	0.040	0.040	235	370
	D	0.17	1.4	0.35	0.035	0.035	235	370
GB/T1591-2009	A	0.2	1.7	0.5	0.035	0.035	345	470
	B	0.2	1.7	0.5	0.030	0.030	345	470
	C	0.2	1.7	0.5	0.030	0.030	345	470
BS En10025	S235JR	0.17	1.4	-	0.035	0.035	235	360
	S275JR	0.21	1.5	-	0.035	0.035	275	410
	S355JR	0.24	1.6	-	0.035	0.035	355	470
DIN 17100	ST37-2	0.2	-	-	0.050	0.050	225	340
	ST44-2	0.21	-	-	0.050	0.050	265	410
	ST52-3	0.2	1.6	0.55	0.040	0.040	345	490
JIS G3101	SS400	-	-	-	0.050	0.050	235	400
JIS G3101	SS490	-	-	-	0.050	0.050	275	490
API 5L PSL1	A	0.22	0.9	-	0.03	0.03	210	335
	B	0.26	1.2	-	0.03	0.03	245	415
	X42	0.26	1.3	-	0.03	0.03	290	415
	X46	0.26	1.4	-	0.03	0.03	320	435
	X52	0.26	1.4	-	0.03	0.03	360	460
	X56	0.26	1.1	-	0.03	0.03	390	490
	X60	0.26	1.4	-	0.03	0.03	415	520
	X65	0.26	1.45	-	0.03	0.03	450	535
	X70	0.26	1.65	-	0.03	0.03	585	570
