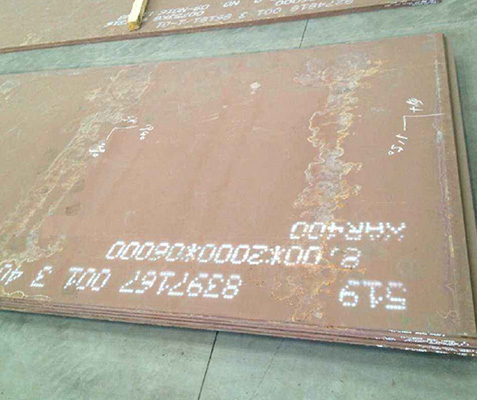

Xar400 Wear Resistant Steel Plate
Xar400 Wear Resistant Steel Plate

Xar 400 500 Wear Resistant Steel Plate

XAR is available in various grades from 300 HBW to 600 HBW and plate thicknesses from 1/6” to 4” (4 to 100 mm), tailored to particular applications, e.g.
Product introduction
XAR Abrasion Resistant Steel Plate
With the advantages of high hardness, quenching and tempering heat treatment, through adding special chemical elements, Gnee steel supplies XAR (Extra Abrasion Resistant) Steel plate product of different grades are developed ( XAR 400, XAR 450, XAR 500,XAR 550, XAR600) tailored for all applications: mining, heavy equipments in steel mills, cement industry, agricultural machinery. Normally hardness of XAR Steel differs due to the delivery state, for example, after annealing to soft, Hardness of XAR 600 at room temperature is 300HB (max), after hardening or heat treatment, it increases to 550 HB(min).
Technical data
XAR Steel Plates Chemical Composition:
Steel Grade C max Si Mn P S Cr Mo Ni B
XAR 400 0.20 0.80 1.50 0.02 0.007 1.0 0.5   0.005
XAR 450 0.22 0.80 1.50 0.02 0.007 1.3 0.5   0.005
XAR 500 0.28 0.80 1.50 0.025 0.010 1.0 0.5   0.005
XAR 550 0.35 0.80 1.50 0.025 0.012 1.3 0.5 1.5 0.005
XAR 600 0.40 0.80 1.50 0.025 0.010 1.5 0.5 1.5 0.005
XAR Steel Plate Mechanical Property:
Steel Grade Tensile Strength Mpa Yield Strength Mpa Elongation % HB
XAR400 1300 1150 ≥12 360-440
XAR450 1350 1200 ≥10 410-490
XAR500 1600 1500 ≥9 450-530
XAR600 - - - ≥550
XAR Steel Plate Hardness and Thickness:
Steel Grade Delivery Condition Thickness(mm) Hardness(HBW)
XAR 400 Quenched and tempered 3-100 370-430
XAR 450 3-100 420-480
XAR 500 4-100 470-530
XAR 550 4-100 500-580
XAR 600 8-40 500(min)

Gnee steel supplies XAR Steel Plate (XAR 400-XAR 600) as well as steel coils and welded steel pipes, if you are interested in buying high quality Abrasion Resistant Plate, please send an email now!
