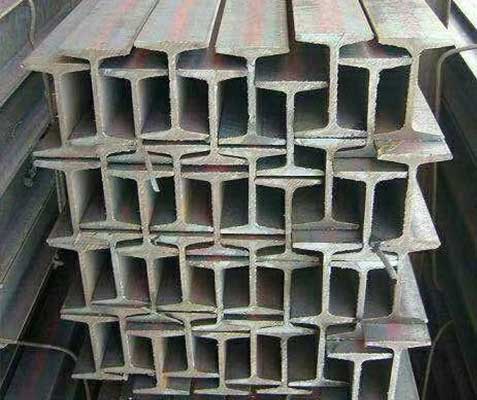

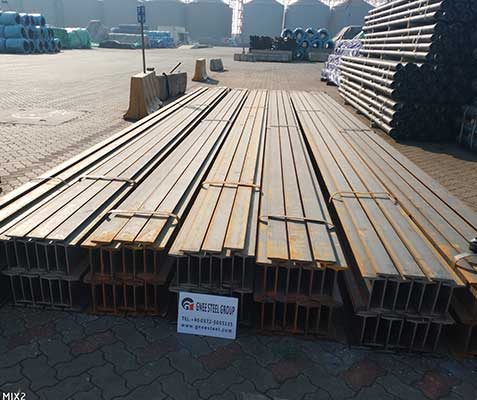

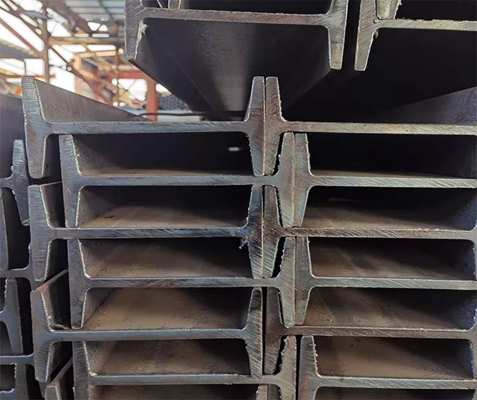

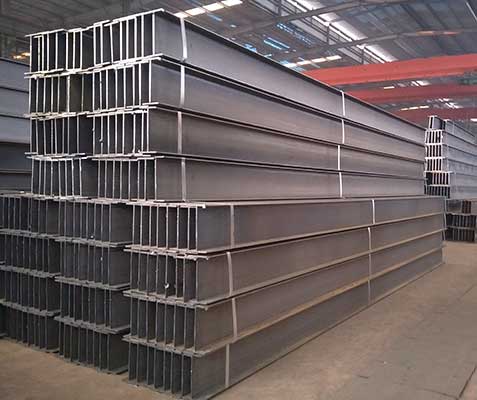

ASTM A572 High Strength Steel I Beam
ASTM A572 High Strength Steel I Beam
ASTM A572 High Strength Steel I Beam
ASTM A572 High Strength Steel I Beam

ASTM A572 High Strength Steel I Beam

Owing to its high strength of 50,000 ksi yield strength, A572-50 steel I sections are increasingly replacing common carbon steel beam like A36 which should be thicker to satisfy the strength requirement. ASTM 572 Steel I section is available in other grades like 42, 55 & 60. Please find the specific chemical components in the table below.
Product introduction

A572-50 steel i beam is widely used in construction & building applications for it can provide more strength per unit of weight. Its low content of alloy elements such as columbium & vanadium optimize the properties in strength and atmospheric corrosion. Owing to its high strength of 50,000 ksi yield strength, A572-50 steel I sections are increasingly replacing common carbon steel beam like A36 which should be thicker to satisfy the strength requirement.

ASTM 572 Steel I section is available in other grades like 42, 55 & 60. Please find the specific chemical components in the table below.

Product description:

  • Item: ASTM A572 steel beam.
  • Technology: hot rolled.
  • Surface treatment: black, galvanized or primed.
  • Sizes: IPN & IPE european standard.
  • Web width: 42 - 215 mm.
  • Depth: 80 - 600 mm.
  • Web thickness: 3.8 - 21.6 mm.
  • Note: Special steel beam sizes are customized on order.
Technical data
Chemical composition (heat analysis)
Item Grade Carbon, max, % Manganese, max, % Silicon, max, % Phosphorus, max, % Sulfur, max, %
A572 steel beams 42 0.21 1.35 0.40 0.04 0.05
50 0.23 1.35 0.40 0.04 0.05
55 0.25 1.35 0.40 0.04 0.05

Mechanical Properties
Item Grade Yield point, min, ksi [MPa] Tensile strength, min, ksi [MPa]
A572 steel beams 42 42 [290] 60 [415]
50 50 [345] 65 [450]
55 55 [380] 70 [485]

ASTM A572 steel beam - IPE dimension
Item Weight (kg/m) Depth (mm) Width (mm) Web thickness (mm) Flange thickness (mm)
IPE 80 6.0 80 46 3.8 5.2
IPE 100 8.1 100 55 4.1 5.7
IPE 120 10.4 120 64 4.4 6.3
IPE 140 12.9 140 73 4.7 6.9
IPE 160 15.8 160 82 5.0 7.4
IPE 180 18.8 180 91 5.3 8.0
IPE 200 22.4 200 100 5.6 8.5
IPE 220 26.2 220 110 5.9 9.2
IPE 240 30.7 240 120 6.2 9.8
IPE 270 36.1 270 135 6.6 10.2
IPE 300 42.2 300 150 7.1 10.7
IPE 330 49.1 330 160 7.5 11.5
IPE 360 57.1 360 170 8 12.7
IPE 400 66.3 400 180 8.6 13.6
IPE 450 79.1 450 190 9.4 14.6
IPE 500 90.7 500 200 10.2 16
IPE 550 106.0 550 210 11.2 17.2
IPE 600 124.4 600 220 12 19

ASTM A572 steel beam - IPN dimension
Item Weight (kg/m) Depth (mm) Width (mm) Web thickness (mm) Flange thickness (mm)
IPN 80 5.9 80 42 3.9 5.9
IPN 100 8.3 100 50 4.5 6.8
IPN 120 11.1 120 58 5.1 7.7
IPN 140 14.3 140 66 5.7 8.6
IPN 160 17.9 160 74 6.3 9.5
IPN 180 21.9 180 82 6.9 10.4
IPN 200 26.2 200 90 7.5 11.3
IPN 220 31.1 220 98 8.1 12.2
IPN 240 36.2 240 106 8.7 13.1
IPN 260 41.9 260 113 9.4 14.1
IPN280 47.9 280 119 10.1 15.2
IPN 300 54.2 300 125 10.8 16.2
IPN320 61.0 320 131 11.5 17.3
IPN 340 68.0 340 137 12.2 18.3
IPN 360 76.1 360 143 13 19.5
