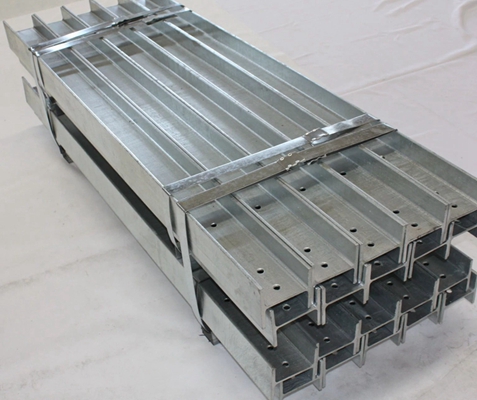

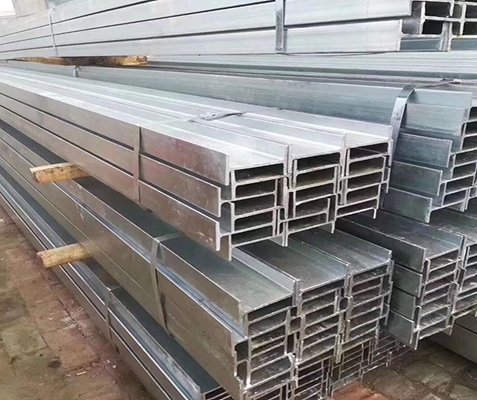

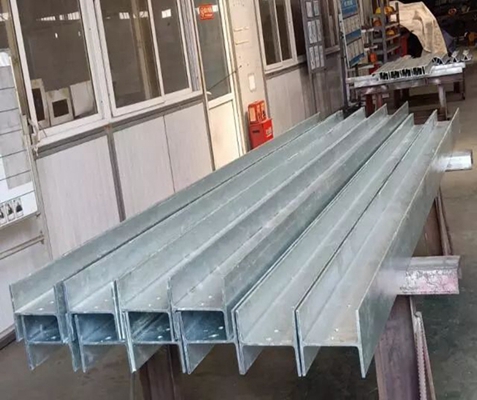

Hot Rolled Carbon Steel H Secthon HEA HEB Beam
| Grade | H Beam H Channeal |
| Standard | JIS ASTM EN DIN |
| Thickness | 2-30mm |
| Size | 100*100mm-400*400mm |
| Surface Treatment | Galvanized and Painted |
| Application |
*Steel structure bearing bracket of industrial structure * Steel pile and supporting structure for underground engineering * Industrial equipment structure of petrochemical industry and electric power * Long-span steel bridge components * Frame structure for ship and machinery manufacturing * Trailer, car, tractor beam support * Port conveyor belt, high-speed baffle bracket |
| Nominal Size(mm) |
H×B (mm) |
T1(mm) | T2(mm) | JIS Weight (kg/m) |
GB Weight (kg/m) |
Available Length |
| 100×100 | 100×100 | 6 | 8 | 16.9 | 17.2 | 6-16m |
| 120×120 | 125×125 | 6.5 | 9 | 23.6 | 23.8 | 6-16m |
| 150×75 | 150×75 | 5 | 7 | 14 | 14.3 | 6-16m |
| 150×100 | 148×100 | 6 | 9 | 20.7 | 21.4 | 6-16m |
| 150×150 | 150×150 | 7 | 10 | 31.1 | 31.9 | 6-16m |
| 175×90 | 175×90 | 5 | 8 | 18 | 18.2 | 6-16m |
| 175×175 | 175×175 | 7.5 | 11 | 40.4 | 40.4 | 6-16m |
| 194×150 | 194×150 | 6 | 9 | 29.9 | 31.2 | 6-16m |
| 200×100 | 198×99 | 4.5 | 7 | 17.8 | 18.5 | 6-16m |
| 200×100 | 5.5 | 8 | 20.9 | 21.7 | 6-16m | |
| 200×200 | 200×200 | 8 | 12 | 49.9 | 50.5 | 6-16m |
| 200×204 | 12 | 12 | 56.2 | 56.7 | 6-16m | |
| 250×125 | 248×124 | 5 | 8 | 25.1 | 25.8 | 6-16m |
| 250×125 | 6 | 9 | 29 | 29.7 | 6-16m | |
| 250×175 | 244×175 | 7 | 11 | 43.6 | 44.1 | 6-16m |
| 300×150 | 298×149 | 5.5 | 8 | 32 | 32.6 | 6-16m |
| 300×150 | 6.5 | 9 | 36.7 | 37.3 | 6-16m | |
| 300×200 | 294×200 | 8 | 12 | 55.8 | 57.3 | 6-16m |
| 298×201 | 9 | 14 | 65.4 | 6-16m | ||
| 350×175 | 346×174 | 6 | 9 | 41.2 | 41.8 | 6-16m |
| 350×175 | 7 | 11 | 49.4 | 50 | 6-16m | |
| 400×200 | 396×199 | 7 | 11 | 56.1 | 56.7 | 6-16m |
| 400×200 | 8 | 13 | 65.4 | 66 | 6-16m | |
| 250×250 | 250×250 | 9 | 14 | 71.8 | 72.4 | 6-16m |
| 250×255 | 14 | 14 | 81.6 | 82.2 | 6-16m | |
| 300×300 | 300×300 | 10 | 15 | 93 | 94.5 | 6-16m |
| 294×302 | 12 | 12 | 83.4 | 85 | 6-16m | |
| 300×305 | 15 | 15 | 105 | 106 | 6-16m | |
| 350×350 | 344×348 | 10 | 16 | 113 | 115 | 6-16m |
| 350×350 | 12 | 1 | 135 | 137 | 6-16m | |
| 400×400 | 388×402 | 15 | 15 | 140 | 141 | 6-16m |
| 394×398 | 11 | 18 | 147 | 147 | 6-16m | |
| 400×400 | 13 | 21 | 172 | 172 | 6-16m | |
| 400×408 | 21 | 21 | 197 | 197 | 6-16m | |
| 414×405 | 18 | 28 | 232 | 233 | 6-16m | |
| 428×407 | 20 | 35 | 283 | 284 | 6-16m | |
| 350×250 | 340×250 | 9 | 14 | 78.1 | 79.7 | 6-16m |
| 400×300 | 390×300 | 10 | 16 | 105 | 107 | 6-16m |
| 450×300 | 440×300 | 11 | 18 | 121 | 124 | 6-16m |
| 450×200 | 446×199 | 8 | 12 | 65.1 | 66.7 | 6-16m |
| 450×200 | 9 | 14 | 74.9 | 76.5 | 6-16m | |
| 500×300 | 482×300 | 11 | 15 | 111 | 115 | 6-16m |
| 488×300 | 11 | 18 | 125 | 129 | 6-16m | |
| 500×200 | 496×199 | 9 | 14 | 77.9 | 79.5 | 6-16m |
| 500×200 | 10 | 16 | 88.2 | 89.6 | 6-16m | |
| 506×201 | 11 | 19 | 102 | 103 | 6-16m | |
| 600×200 | 600×200 | 11 | 17 | 103.4 | 106 | 6-16m |
| 596×199 | 10 | 15 | 92.4 | 95.1 | 6-16m | |
| 606×201 | 12 | 20 | 118 | 120 | 6-16m | |
| 600×300 | 582×300 | 12 | 17 | 133 | 137 | 6-16m |
| 588×300 | 12 | 20 | 147 | 151 | 6-16m | |
| 594×302 | 14 | 23 | 170 | 175 | 6-16m | |
| 700×300 | 692×300 | 13 | 20 | 163 | 166 | 6-16m |
| 700×300 | 13 | 24 | 182 | 185 | 6-16m | |
| 800×300 | 800×300 | 14 | 26 | 207 | 210 | 6-16m |
| 808×302 | 16 | 30 | 241 | 6-16m | ||
| 900×300 | 890×299 | 15 | 23 | 210 | 213 | 6-16m |
| 900×300 | 16 | 28 | 240 | 243 | 6-16m | |
| 912×302 | 18 | 34 | 283 | 286 | 6-16m |
FAQ
1.Are You H Beam Manufacture or Trade Company?
We are manufacture,we have 12 years experience for supply Metal material and products in domestic.
2.Can you supply what is the service?
We can supply deep process,such as bend,slott,punch etc
3.Can you supply the free H Beam sample?
We can supply the free sample,but the sample express freight should be by you.
4.What about your the fast lead time if we place order?
It is normal 7-10 days after receive your deposit.
5.Which payment terms can you accept?
We can accept the TT,Western Union or Negotiation.
