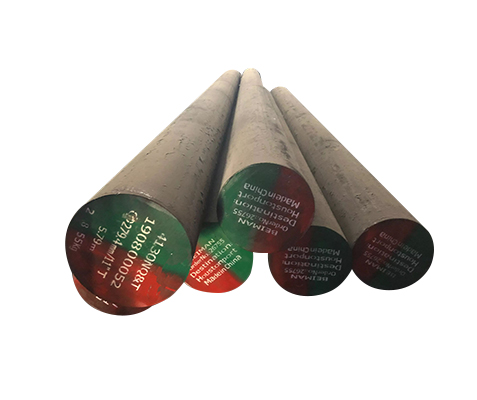

18CrNiMo7-6 hot rolled steel round bars
18CrNiMo7-6 hot rolled steel round bars
18CrNiMo7-6 hot rolled steel round bars
18CrNiMo7-6 hot rolled steel round bars

18CrNiMo7-6 hot rolled steel round bars

18CrNiMo7-6 is a case hardening steel with high toughness. There are a number of variants with high cleanliness requirements. All variants possess tighter composition ranges compared to the standard. produced with the quality class IQ (isotropic quality). This ensures a very low number of elongated sulphide inclusions which will give more isotropic properties. The high oxidic cleanliness will enable the steel to meet the same high cleanliness demands as for re-melted qualities
18CrNiMo7-6 hot rolled steel round bars information

18CrNiMo7-6 is a case hardening steel with high toughness. There are a number of variants with high cleanliness requirements. All variants  possess tighter composition ranges compared to the standard.  produced with the quality class IQ (isotropic quality). This ensures a very low number of elongated sulphide inclusions which will give more isotropic properties. The high oxidic cleanliness will enable the steel to meet the same high cleanliness demands as for re-melted qualities

Chemical Composition

Chemical Composition

Standard Grade C Mn P S Si Ni Cr Mo

EN 10084
18CrNiMo7-6
0.15-0.21

0.50-0.90

≤ 0.025

≤ 0.035

≤ 0.04

1.4-1.7

1.5-1.8

0.25-0.35
1.6587

Physical Property

Density, g/cm3 7.85
Specific heat capacity J/(kg.K) 460
Electric resistivity Ohm.mm2 /m 0.18
Electric conductivity Siemens.m/mm2 5.55
Modulus of elasticity Gpa 210
Thermal expansion 10^6 m/(m.K) 100 ℃ 200 ℃ 300 ℃ 400 ℃ 500 ℃
11.1 12.1 12.9 13.5 13.9

Mechanical Property

Size mm ≤ 11 12-30 31-63
R Mpa 1180-1420 1080-1320 980-1270
Rp 0.2 Mpa ≥ 835 ≥785 ≥ 685
A % ≥ 7 ≥ 8 ≥ 5
C % ≥ 30 ≥ 35 ≥ 35
Kv J ≥ 44 ≥ 44
Hardness HB 354-406 327-384 295-373

Forging

DIN 1.6587 | 17CrNiMo6 |18CrNiMo7-6 forging temperature:900 – 1100°C,cool slowly in the sand after forged.

Heat Treatment

  • Normalizing:850 – 880°C/air
  • Soft annealing:650 – 700°C/furnace
  • Stress relieve:630- 650oC
  • Carburising:880 – 980°C
  • Core hardening:830 – 870°C/water
  • Intermediate annealing:630 – 650°C
  • Case hardening:780 – 820°C/water
  • Tempering:150 – 200°C

Surface Hardness

  • Treated to improveshearability(+S):Max 255HB
  • Soft annealed(+A):Max 229HB
  • Treated to hardness range(+TH):179-229HB
  • Treated to ferrite-pearlite structure and hardness range(+FP):159-207HB

Application

DIN 1.6587 | 17CrNiMo6 |18CrNiMo7-6 steel for the parts which require core tensile strength and high hardness. Susceptible to the large seized parts with high wearing resistance and loading such as: Heavy Duty Bushings and Bearings, Cam Followers, Clutch Dogs, Compressor Bolts, Extractors, Fan Shafts, Heavy Duty Gears, Pump Shafts, Sprockets, Tappets, Wear Pins, Wire Guides etc..


FAQ

Q: Why choose us?

A: We have professional team, service and inpection.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.

Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample for free charge, but freight cost collected.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us .
