321 SS Plates

321 SS is a titanium stabilized austenitic chromium-nickel stainless steel which was developed to provide an 18-8 type alloy with improved intergranular-corrosion resistance. This material is stabilized against chromium carbide formation by the addition of titanium. Since titanium has a stronger affinity for carbon than chromium, titanium carbide precipitates within the grains instead of forming at the grain boundaries.

321 stainless steel should be considered for applications requiring intermittent heating between 800ºF (427ºC) and 1650ºF (899ºC), or for welding under conditions which prevent a post-weld anneal.  321 stainless steel is non-magnetic. SS 321 Coil / Strip stockist and exporter in India, View AISI 321 foil Price List Ex Mumbai and DIN 1.4541 / WNR 1.4878 Plate price per meter in USD

• Grade 321/321H
• ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2 and BS EN 10088-4
• EN 10088/2, EN 10088/4 and CE Marking
• NACE MR 0175/ISO 15156 Certification

Product Details

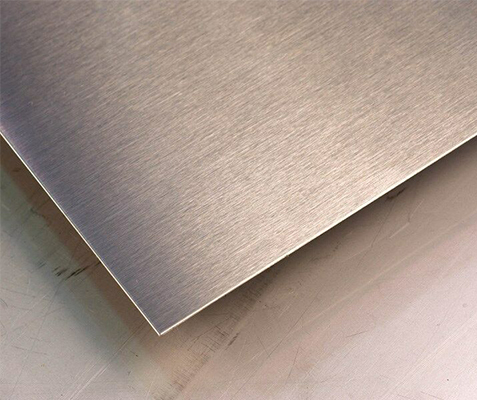

Product Type	321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification	ASTM A240 321 / ASME SA 240 321
Tolerances (width / thickness)	EN 10258/ DIN 59381) EN 10151 ASTM A240 Grade 321 Strips EN 10088 A240 Tp 321 strips
International Standard	ASTM A 480 ASTM A 959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510
ASTM A240 321 material Dimensions	Cold rolled 321 Stainless Steel Plate 0.5-6.4 mm Hot rolled 321 Stainless Steel Plate 3.0–10.0 mm
Thickness	0.1 to 100 mm Thk
Width	10-2500mm
Length	2m, 2.44m, 3m, or as required
Finish	SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc.
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Forms / Shapes	Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Other Trade Name of 321 Stainless Sheet	SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet

Chemical Analysis



SS Grade		C	Si	Mn	P	S	Cr	Mo	Ni	N	Other
Type 321	min. max	- 00.08	00.75	2.00	00.045	00.030	17.0 19.0	-	9.0 12.0	00.10	Ti=5(C+N) 00.70
Type 321H	min. max	00.04 00.10	00.75	2.00	00.045	00.030	17.0 19.0	-	9.0 12.0	-	Ti=4(C+N) 00.70
Type 347	min. max	00.08	00.75	2.00	00.045	00.030	17.0 19.0	-	9.0 13.0	-	Nb=10(C+N) 1.0

Stainless Steel 321 Mechanical Properties

SS Type	Tensile Strength minimum (MPa)	Yield Strength 0.2% Proof minimum (MPa)	Elongation minimum (% in 50mm)	Hardness
				Rockwell B (HR B) maximum	Brinell (HB) maximum
321	515	205	40	95	217
321H	515	205	40	95	217
347	515	205	40	92	201
