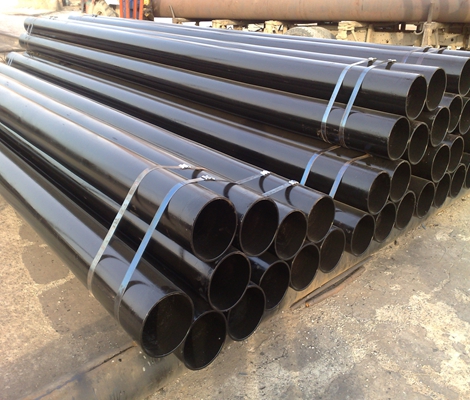

Specifications: ASTM A106 SCH40 Seamless Carbon Steel Pipes
·Material Specification: A106 Gr B Seamless [ASTM Standard]
·Pipe Size: a) ½” Sch 40 [15NB] to 34”Sch40 [900NB]
·Dimension Standard: B36.10 M [ANSI Standard]
·Random Length: 5m to 7m
·All pipes are without any rust, pitting and are of good quality.
·Pipes confirm to material specification of latest edition of ASTM.
·Material test certificate is from a government approved agency.
·Mill produce original Test Certificates and copies of Test Certificates for pipes.

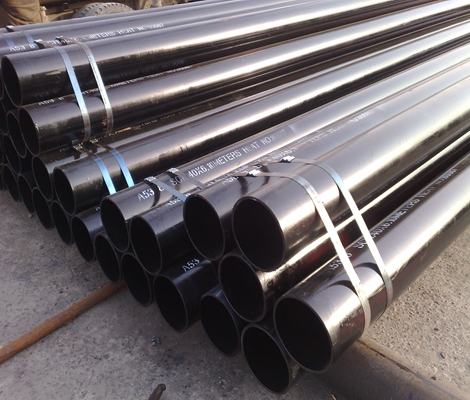

·Each piece of seamless carbon steel pipes is marked as per ASTM A106.The marking can be imprinted by electric etching or other approved and permanent method of identification.
ASTM A106 SCH40 Seamless Carbon Steel Pipes(OD,WT,WEIGHT PER METER)
| ASTM A106 SCH40 Seamless Carbon Steel Pipes | ||||||||
| N | Size | Descripition | KGS/MTR | |||||
| OD | WT | |||||||
| Inch | mm | sch | mm | ABT | ||||
| 1 | 1/2 | 21.3 | sch40 | 2.77 | Cold Drawn | 1.266 | ||
| 2 | 3/4 | 26.7 | sch40 | 2.87 | Cold Drawn | 1.687 | ||
| 3 | 1 | 33.4 | sch40 | 3.38 | Cold Drawn | 2.502 | ||
| 4 | 1 1/4 | 42.2 | sch40 | 3.56 | Hot Rolled | 3.392 | ||
| 5 | 1 1/2 | 48.3 | sch40 | 3.68 | Hot Rolled | 4.049 | ||
| 6 | 2 | 60.3 | sch40 | 3.91 | Hot Rolled | 5.437 | ||
| 7 | 2 1/2 | 73 | sch40 | 5.16 | Hot Rolled | 8.632 | ||
| 8 | 3 | 88.9 | sch40 | 5.49 | Hot Rolled | 11.292 | ||
| ASTM A106 SCH40 Seamless Carbon Steel Pipes | ||||||||
| N | Size | Descripition | KGS/MTR | |||||
| OD | WT | |||||||
| Inch | mm | sch | mm | ABT | ||||
| 1 | 8 | 219.1 | sch40 | 8.18 | Hot Rolled | 42.547 | ||
| 2 | 10 | 273 | sch40 | 9.27 | Hot Rolled | 60.288 | ||
| 3 | 12 | 323.8 | sch40 | 10.31 | Hot Rolled | 79.703 | ||
| 4 | 14 | 355.6 | sch40 | 11.13 | Hot Rolled | 94.545 | ||
| 5 | 16 | 406.4 | sch40 | 12.7 | Hot Rolled | 123.3 | ||
| 6 | 20 | 508 | sch40 | 15.09 | Hot Rolled | 183.421 | ||
| 7 | 24 | 609.6 | sch40 | 17.48 | Hot Rolled | 255.237 | ||
