API 5L X52 Oil Pipe Natural Oil and Gas Pipeline

API 5L specification covers seamless and welded steel line pipe. It includes standard-weight and extra-strong threaded line pipe. It includes standard-weight and extra-strong threaded line pipe; and standard-weight plain-end, regular-weight plain-end, special plain-end, extra-strong plain-end, special plain-end, extra-strong plain-end pipe; as as well as bell and spigot and through-the-flow line(TFL) pipe.


Material	GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc.
Size	Size 1/4" to 24"  Outside Diameter 13.7 mm to 610 mm
Standard	API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004  , ASTM A1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448
Certificates	API5L, ISO 9001:2008,SGS, BV,CCIC
Wall thickness	SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment	black paint, varnish, oil, galvanized, anti corrosion coatings
Marking	Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Ends	Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Pipe Length	1. Single Random Length and double Random Length. 2. SRL:3M-5.8M  DRL:10-11.8M or As clients requested length 3. fixed length(5.8m, 6m, 12m)

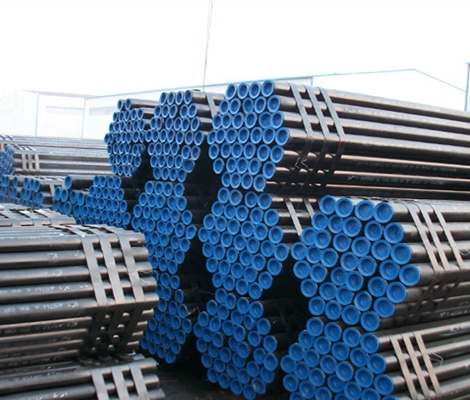

Packaging	Loose package; Packaged in bundles(2Ton Max);  bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.
Test	Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
Application	oil pipe; gas pipe
Advantages	1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port.

API X52 Chemical Composition

X52 PSL1				X52 PSL2
Grade	C (Max.)	Mn (Max.)	P (Max.)	S (Max.)	C (Max.)	Mn (Max.)	P (Max.)	S (Max.)
X52	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015



Physical Properties

API 5L Grade	Yield Strength min. (ksi)	Tensile Strength min. (ksi)	Yield to Tensile Ratio (max.)	Elongation min. %1
X52	52	66	0.93	21



API 5L X52 Equivalent

ASTM API 5L	Specification for line pipe
Material Grade	PSL1	L360 or x52
Material Grade	PSL2	L360N or X52N L360Q or X52Q L360M or X52M
