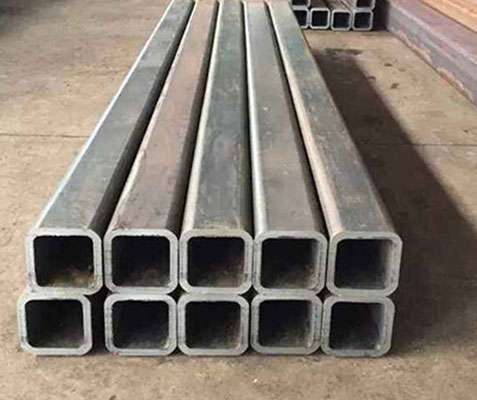

Square steel pipe is a kind of square pipe, which is a steel pipe with equal sides. It is a strip of steel that has been processed and rolled. Generally, the strip is unpacked, flattened, crimped, welded to form a round tube, and then rolled into a square tube by a round tube and then cut into a desired length. Usually 50 per pack.
1. It can carry out the standard of cold-formed hollow steel for GB6728-2002 structure.
2. The JISG3466-88 Japan general construction square tube adaptation range standard can be implemented.
| Outer Diameter: | 15*15-500*500mm |
| Length: | Max. 12 meters |
| Standard: | GB, ANSI,ASME,ASTM, JIS,DIN,BS,EN |
| Steel Grade: | Q195/Q215/Q235/Q345/10#/20#/ASTM A106 GRB |
| Packing: | Hexagonal bundles of max. 3,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper |
| Test: | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
| SIZE: | Hot rolled:W.T: 1.0-25mm |
| Cold rolled:W.T:0.6-1.5mm | |
| Other Surface Treatment: | painted letter, embossed, painting |
| Usage: | For construction , structure,furniture, guardrail,fencing |
