API 5L specification covers seamless and welded steel line pipe. It includes standard-weight and
extra-strong threaded line pipe. It includes standard-weight and extra-strong threaded line pipe;
and standard-weight plain-end, regular-weight plain-end, special plain-end, extra-strong plain-end,
special plain-end, extra-strong plain-end pipe; as as well as bell and spigot and through-the-flow line(TFL) pipe.
The purpose of this specification is to provide standards for pipe suitable for use in conveying gas, water, and oil in
both the oil and natural gas industries
API 5L X42/56/65/80 seamless steel pipe Product Features:
1.Corrosion resistant
2.Accurate dimensions
3.Can sustain high pressure & temperature load
4.Rust proof finish
5.Smooth transition from flange thickness to pipe
6.Ensure excellent stress distribution
| Product Name: | API 5L PSL1 PSL2 x42 x56 x60 steel pipe | |
| OD | 219-3220mm | |
| Size | Wall Thickness | 4-20mm SCH30,SCH40,STD,XS,SCH80,SCH160,XXS etc. |
| Length | 3-12m | |
| Steel material | Q195 → Grade B, SS330,SPHC, S185 Q215 → Grade C,CS Type B,SS330, SPHC Q235 → Grade D,SS400,S235JR,S235JO,S235J2 |
|
| Standard | JIS A5525, DIN 10208, ASTM A106, GB9711.1-1997 | |
| Usage | Used For Structure, Accessorize,Fluid Transportation And Construction | |
| Ends | Beveled | |

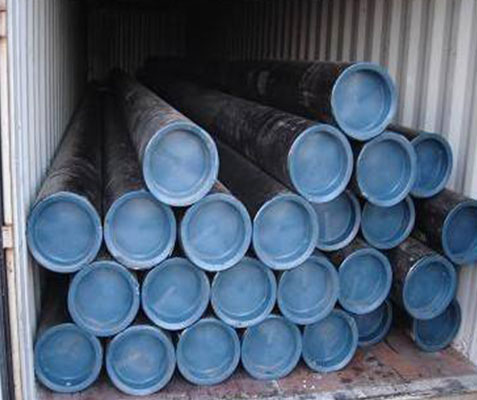

| End protector | 1) Plastic pipe cap 2)Iron protector |
|
| Surface Treatment | 1) Bared 2) Black Painted (varnish coating) 3) With Oiled 4) 3 PE, FBE |
|
| Technique | Electronic Resistance Welded (ERW ) Electronic Fusion Welded (EFW) Double Submerged Arc Welded (DSAW) |
|
| Type | Welded | |
| Welded Line Type | Spiral | |
| Inspection | With Hydraulic Testing, Eddy Current , Infrared Test | |
| Section Shape | Round | |
| Package | 1) Bundle, 2) In Bulk, 3) Clients' Requirements |
|
| Delivery | 1) Container 2) Bulk carrier |
|
| API 5L PIPE PSL1 Chemical and Mechanical Properties | |||||||||
|
API 5L PIPE PSL1 |
Chemical Composition |
Mechanical Property |
|||||||
|
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
TENSILE ( Min ) |
YIELD ( Min ) |
||||
|
Psi X 1000 |
Mpa |
Psi X 1000 |
Mpa |
||||||
|
Grade X42 |
0.26 |
1.30 |
0.030 |
0.030 |
60 |
414 |
42 |
290 |
|
|
Grade X56 |
0.26 |
1.40 |
0.030 |
0.030 |
71 |
490 |
56 |
386 |
|
|
Grade X65 |
0.26 |
1.45 |
0.030 |
0.030 |
77 |
531 |
65 |
448 |
|
| API 5L PIPE PSL2 Chemical and Mechanical Properties | ||||||||||||
|
API 5L PIPE |
Chemical Composition |
Mechanical Property |
||||||||||
|
C |
Mn |
P |
S |
Tensile |
Yield |
C. E. IMPACT ENERGY |
||||||
|
Psi x 1000 |
Mpa |
Psi x 1000 |
Mpa |
PCM |
IIW |
J |
FT/LB |
|||||
|
Grade X42 |
0.22 |
1.30 |
0.025 |
0.015 |
60 – 110 |
414 – 758 |
42 – 72 |
290 – 496 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
Grade X56 |
0.22 |
1.40 |
0.025 |
0.015 |
71 – 110 |
490 – 758 |
56 – 79 |
386 – 544 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
Grade X65 |
0.22 |
1.45 |
0.025 |
0.015 |
77 – 110 |
531 – 758 |
65 – 82 |
448 – 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
Grade X80 |
0.22 |
1.90 |
0.025 |
0.015 |
90 – 120 |
621 – 827 |
80 – 102 |
552 – 705 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
