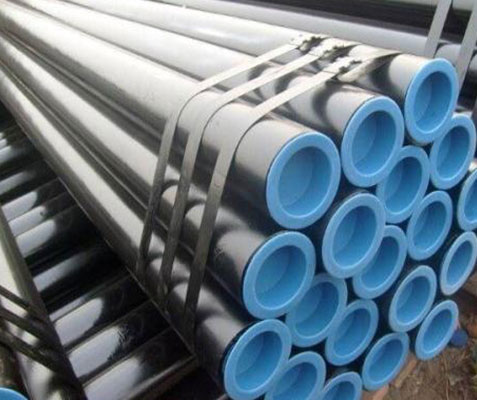

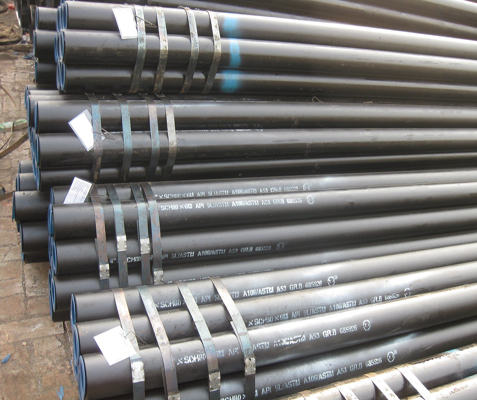

Oil pipe line API 5L ASTM A106 A53 seamless steel pipe
Oil pipe line API 5L ASTM A106 A53 seamless steel pipe
Oil pipe line API 5L ASTM A106 A53 seamless steel pipe
Oil pipe line API 5L ASTM A106 A53 seamless steel pipe

Oil pipe line API 5L ASTM A106 A53 seamless steel pipe

ASTM A53 is a carbon steel alloy, which can be used as structural steel or for low-pressure pipelines. ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines. A53 pipe comes in three types (F, E, S) and two grades (A, B). A53 Type F is manufactured with a furnace butt weld or may have a continuous weld (Grade A only) A53 Type E has an electric resistance weld (Grades A and B) A53 Type S is a seamless pipe and found in Grades A and B)
Product introduction
ASTM A53 Grade B Seamless is our most popular product under this specification and A53 pipe is commonly dual certified to A106 B Seamless pipe.

ASTM A53 Grade B is the material under the American steel pipe standard, API 5L Gr.B is also the American standard material, A53 GR.B ERW refers to the electric resistance welded steel pipe of A53 GR.B; API 5L GR.B Welded refers to the material Welded steel pipe of API 5L GR.B.

Chemical Properties %

/    Grade C,
max
Mn,
max
P,
max
S,
max
Cu*,
max
Ni*,
 max
Cr*,
max
Mo*,
max
V*,
max
                                   Type S (Seamless)  A 0.25 0.95   0.05   0.05 0.4   0.4   0.4     0.15     0.08
B 0.3 1.2   0.05   0.05 0.4   0.4   0.4     0.15     0.08
                       Type E (Electric-resistance Welded)  A 0.25   0.95   0.05   0.05 0.4   0.4   0.4     0.15     0.08
B 0.3 1.2   0.05   0.05    0.4   0.4   0.4     0.15     0.08
                              Type F (Furnace-welded) A 0.3 1.2   0.05   0.05    0.4   0.4   0.4     0.15     0.08

*The total composition for these five elements shall not exceed 1.00%

Mechanical Properties

  Grade A Grade B
Tensile Strength, min., psi, (MPa) 48,000 (330) 60,000 (415)
Yield Strength, min., psi, (MPa) 30,000 (205) 35,000 (240)

(Note: This is summarized information from ASME Specification A53. Please refer to the specific Standard or Specification or contact us for more details.)


ASTM A53 seamless steel pipe is an American standard brand. A53-F corresponds to China's Q235 material, A53-A corresponds to China's No. 10 material, and A53-B corresponds to China's No. 20 material.

Production process
Seamless steel pipe manufacturing process is divided into hot-rolled and cold seamless pipe.
1. Production process of hot-rolled seamless steel pipe: tube billet → heating → perforation → three-roller/cross-rolling & continuous rolling → de-pipe → sizing → cooling → straightening → hydraulic test → marking → seamless steel pipe with leverage effect detected.
2. Production process of cold drawn seamless steel tubes: tube blank → heating → perforation → heading → annealing → pickling → oiling → multiple cold drawing → blank tube → heat treatment → straightening → hydraulic test → marking → storage.

Applications
1. Construction: the pipeline underneath, the groundwater, and the hot water transportation.
2. Mechanical processing, bearing sleeves, processing machinery parts, etc.
3. Electrical: Gas delivery, Hydroelectric power fluid pipeline

4. Anti-static tubes for wind power plants, etc.


Technical data
Product name Material Standard Size(mm) Application
    Low temperature tube 16MnDG
10MnDG
09DG
09Mn2VDG
06Ni3MoDG
ASTM A333
GB/T18984- 2003 ASTM A333 OD:8-1240*
WT:1-200
Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe
  High-pressure boiler tube 20G
ASTMA106B
ASTMA210A
ST45.8-III
GB5310-1995
ASTM SA106
ASTM SA210
DIN17175-79
OD:8-1240*
WT:1-200
Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc
Petroleum cracking tube 10
20
GB9948-2006 OD: 8-630*
WT:1-60
Used in oil refinery furnace tube, heat exchanger tube
  Low medium pressure boiler tube 10#
20#
16Mn,Q345
GB3087-2008 OD:8-1240*
WT:1-200
Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler
  General structure of the tube 10#,20#,45#,27SiMn
ASTM A53A,B
16Mn,Q345
GB/T8162-
2008
GB/T17396-
1998
ASTM A53
OD:8-1240*
WT:1-200
Apply to the general structure, engineering support, mechanical processing, etc
  Oil casing J55,K55,N80,L80
C90,C95,P110
API SPEC 5CT
ISO11960
OD:60-508*
WT:4.24-16.13
Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall
