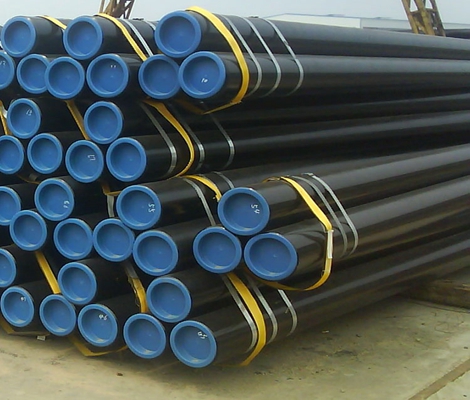

API 5L is generally refers to the standards of pipeline steel, include pipeline pipe and pipeline steel plate. Pipeline steel pipe is used to extract oil, steam, water on the ground to the oil and gas industry enterprises.According to manufacture method, pipeline steel pipes are produced into seamless pipe and welded steel pipe, commonly used pipeline line types are welded steel tube with spiral submerged arc welding pipe (SSAW), straight seam submerged arc welding pipe (LSAW), electric resistance welding (ERW), seamless steel pipe is usually chosen where pipe diameter is less than 152 mm.
Product Details
| API 5l Grade B Pipe End | Plain, Bevel, Screwed, Threaded |
| API 5l B Pipe HS Code |
730420 Casing, tubing and drill pipe, of a kind used in drilling for oil or gas: Casing: 730439 Other Tubes,Pipes 730449 Other Tubes, Pipes and Hollow Profiles, of Stainless Steel, Seamless 730451 Tubes, Pipes and Hollow 730490 Other Tubes, Pipes and Hollow Profiles, Seamless, of Iron or Steel 730431 Tubes, Pipes and Hollow 730441 Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced) |
| API Grade B Line Pipe Length | Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths |
| CS API 5L Line Pipes Sizes | Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness - Schedule 10 through 160, STD, XS, XXS. |
| API 5L Grade B Seamless Pipe Technique | Hot rolling; cold drawing; NDT test; UT test; Hydrostatic Tester |
| API 5L Grade b ERW pipe Applications | Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes |
| API 5l grade b line pipe Thickness | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| API 5L GrB Pipes Type | Seamless / ERW / Welded / Fabricated / CDW |
| Gr b dsaw pipe Product Specification Level (PSL) | API 5L GrB PSL 2 Pipe API 5L GrB PSL 1 Pipe |
API 5L Grade B Carbon Steel Seamless Pipe Chemical Composition
| Grade | Chemical Composition | |||||||
| C | Si | Mn | P | S | V | Nb | Ti | |
| API 5L Grade B PSL1 Pipe | 0.16 | 0.45 | 1.65 | 0.020 | 0.010 | 0.07 | 0.05 | 0.04 |
Mechanical Properties
| Grade | Permissible yield point ratio | Yield Strength MPa(min) | Tensile Strength MPa | Elongation % (min) |
| API 5l Grade B | ≤ 0.85 | 290 | 420 - 540 | 23 |
| API 5L Pipe Sizes in Inch | |||||||||
| 1/2 | 1/2 | 1/2 | 1/2 | - | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| 3/4 | 3/4 | 3/4 | 3/4 | - | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| 1.25 | 1.25 | 1.25 | 1.25 | - | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| 1.5 | 1.5 | 1.5 | 1.5 | - | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| 2 | 2 | 2 | 2 | - | 2 | 2 | 2 | 2 | 2 |
| 2.5 | 2.5 | 2.5 | 2.5 | - | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| 3 | 3 | 3 | 3 | - | 3 | 3 | 3 | 3 | 3 |
| 3.5 | 3.5 | 3.5 | 3.5 | - | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| - | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| - | 12 | 12 | - | 12 | 12 | 12 | 12 | 12 | 12 |
| - | 14 | 14 | - | 14 | 14 | 14 | 14 | 14 | 14 |
| - | 16 | 16 | - | - | 16 | 16 | 16 | 16 | 16 |
| - | 18 | 18 | - | - | 18 | 18 | 18 | 18 | 18 |
| - | 20 | 20 | - | - | 20 | 20 | 20 | 20 | 20 |
| - | - | 22 | - | - | 22 | 22 | 22 | 22 | 22 |
| - | - | 24 | - | - | 24 | 24 | 24 | 24 | 24 |
