Type |

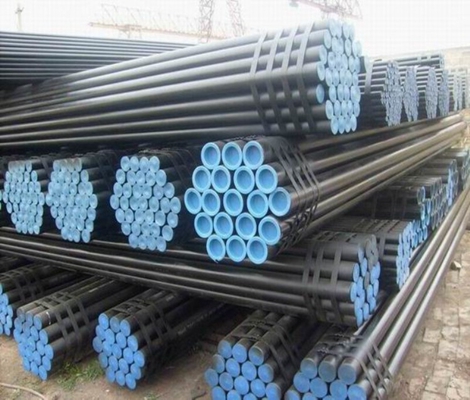

API 5L B Seamless steel pipe | |
|
ExecutiveStandard |
API 5L |
|
|
Materials |
PSL1—L245B/L290X42/L320X46/L360X52/L390X56/L415X60/L450X65/L485X70 PSL2—L245/L290/L320/L360/L390/L415/L450/L485 X42/X46/X52/X56/X60/X65/X70/X80 |
|
|
Size |
Outer Diameter |
Seamless:17-914mm 3/8"-36" LSAW 457-1422mm 18"-56" |
|
Wall Thickness |
2-60mm SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS |
|
|
Length |
Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request |
|
|
Ends |
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
|
|
Surface Treatment |
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating |
|
|
Technical Methods |
Hot-rolled/Cold-drawn/Hot-expanded |
|
|
Testing Methods |
Pressure test,Flaw detection,Eddy current testing, Hydrostatic testing or Ultrasonic examination and |
|
|
Packaging |
Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven bags; Wooden cases;Suitable for lifting operation;Loaded in 20ft 40ft or 45ft container or in bulk; Also accrdin to customer's requests |
|
|
Application |
Conveying oil gas and water |
|
|
Certificates |
API ISO PED Lloyd's |
|
|
Third Party Inspection |
SGS BV MTC |
|
Composition ranges for API 5L Gr B Seamless Pipe
| API 5L | Seamless pipe | |||
| Grade B | C max | Mn max | P max | S max |
| 0.28 | 1.20 | 0.030 | 0.030 | |
Mechanical properties of CS API 5L Gr B Seamless Pipes
| API 5L | Yield strength | Tensile strength | Tensile strength |
| MPa (psi), min | MPa (psi), min | MPa (psi), min | |
| Grade B | 245 (35 500) | 415 (60 200) | 415 (60 200) |
