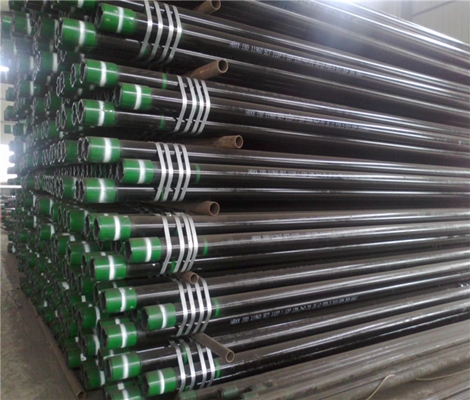

API 5CT Q125 casing tubing
API 5CT Q125 casing tubing
API 5CT Q125 casing tubing
API 5CT Q125 casing tubing

API 5CT Q125 casing tubing

Q125 Tubing is placed within the casing. It is used to transport oil and gas from the source rock to the wellhead.
Product introduction

API 5CT Q125 Casing serves to transport both crude oil and natural gas from oil and gas layer to the surface pipeline after drilling is completed. It is able to bear the pressure produced by the exploitation process. After the outer surface is coated with a protective layer, the tubing is marked in accordance with the API 5CT standard and strapped with metal belt.

Specification

Product Name Seamless Oil Pipe
Material GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc.
Size Size 1/4" to 24" Outside Diameter 13.7 mm to 610 mm
Standard

API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004,ASTM A1020-2002,
ASTM A179-1990,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448

Certificates API5L, ISO 9001:2008,SGS, BV,CCIC
Wall thickness SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment black paint, varnish, oil, galvanized, anti corrosion coatings
Marking Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Ends Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Pipe Length 1. Single Random Length and double Random Length.
2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length
3. fixed length(5.8m, 6m, 12m)
Packaging Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for
easy loading and discharging; End with Plastic caps; wooden cases.
Test Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection,
hydraulic testing , X-ray Test.
Application oil pipe; gas pipe
Advantages 1.Reasonable price with excellent quality
2.Abundant stock and prompt delivery
3.Rich supply and export experience, sincere service
4.Reliable forwarder, 2-hour away from port.

PRODUCT GRADE DIAMETER END TYPE
Q125 TUBING J55, JFBNAU, L80, P110, 1% Chrome 2.375" – 3.5" Plain End
EUE 8RD
Q125 CASING J-55, L80 HC, P110 HC 4.5" – 9.625" (J55, L80 HC, P110 HC)
10.75” - 20” (J55)
Plain End, STC, LTC, BTC

API 5CT Q125 Casing serves to transport both crude oil and natural gas from oil and gas layer to the surface pipeline after drilling is completed. It is able to bear the pressure produced by the exploitation process. After the outer surface is coated with a protective layer, the tubing is marked in accordance with the API 5CT standard and strapped with metal belt.

API 5CT Q125 Casing can be widely applicable to petroleum, construction, shipbuilding, smelting, aviation, electric power, food, paper, chemical industry, medical equipment, boilers, heat exchangers, metallurgy and so on.
Technical data
Chemical Composition
Group Grade Type C Mn Mo Cr Ni max. Cu max. P max. S max. Si max.
min. max. min. max. min. max. min. max.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 H40 - - - - - - - - - - - 0.03 0.03 -
J55 - - - - - - - - - - - 0.03 0.03 -
K55 - - - - - - - - - - - 0.03 0.03 -
N80 1 - - - - - - - - - - 0.03 0.03 -
N80 Q - - - - - - - - - - 0.03 0.03 -
R95 - - 0.45 c - 1.9 - - - - - - 0.03 0.03 0.45
2 M65 - - - - - - - - - - - 0.03 0.03 -
  L80 1 - 0.43 a - 1.9 - - - - 0.25 0.35 0.03 0.03 0.45
  L80 9Cr - 0.15 0.3 0.6 0.9 1.1 8 10 0.5 0.25 0.02 0.01 1
  L80 13Cr 0.15 0.22 0.25 1 - - 12 14 0.5 0.25 0.02 0.01 1
  C90 1 - 0.35 - 1.2 0.25 b 0.85 - 1.5 0.99 - 0.02 0.01 -
  T95 1 - 0.35 - 1.2 0.25 d 0.85 0.4 1.5 0.99 - 0.02 0.01 -
  C110 - - 0.35 - 1.2 0.25 1 0.4 1.5 0.99 - 0.02 0.005 -
3 P110 e - - - - - - - - - - 0.030 e 0.030 e -
4 Q125 1 - 0.35   1.35 - 0.85 - 1.5 0.99 - 0.02 0.01 -
a The carbon content for L80 may be increased up to 0.50 % maximum if the product is oil-quenched.
b The molybdenum content for Grade C90 Type 1 has no minimum tolerance if the wall thickness is less than 17.78 mm.
c The carbon content for R95 may be increased up to 0.55 % maximum if the product is oil-quenched.
d The molybdenum content for T95 Type 1 may be decreased to 0.15 % minimum if the wall thickness is less than 17.78 mm.
e For EW Grade P110, the phosphorus content shall be 0.020 % maximum and the sulfur content 0.010 % maximum.
NL = no limit. Elements shown shall be reported in product analysis.


Tensile and hardness requirements
Group Grade Type Total elongation under load % Yield strength MPa Tensile strength min. MPa Hardness a max. Specified wall thickness mm Allowable hardness variation b HRC
min. max .   HRC HBW
1 2 3 4 5 6 7 8 9 10 11
1 H40 - 0.5 276 552 414 - - - -
J55 - 0.5 379 552 517 - - - -
K55 - 0.5 379 552 655 - - - -
N80 1 0.5 552 758 689 - - - -
N80 Q 0.5 552 758 689 - - - -
R95 - 0.5 655 758 724 - - - -
2 M65 - 0.5 448 586 586 22 235 - -
L80 1 0.5 552 655 655 23 241 - -
L80 9Cr 0.5 552 655 655 23 241 - -
L80 13Cr 0.5 552 655 655 23 241 - -
C90 1 0.5 621 724 689 25.4 255 ≤ 12.70 12.71 to 19.04 19.05 to 25.39 ≥ 25.40 3.0 4.0 5.0 6.0
T95 1 0.5 655 758 724 25.4 255 ≤ 12.70 12.71 to 19.04 19.05 to 25.39 ≥ 25.40 3.0 4.0 5.0 6.0
C110 - 0.7 758 828 793 30 286 ≤ 12.70 12.71 to 19.04 19.05 to 25.39. ≥ 25.40 3.0 4.0 5.0 6.0
3 P110 - 0.6 758 965 862 - - - -
4 Q125 1 0.65 862 1034 931 b - ≤ 12.70 12.71 to 19.04 ≥ 19.05 3.0 4.0 5.0
a In case of dispute, laboratory Rockwell C hardness testing shall be used as the referee method.
b No hardness limits are specified, but the maximum variation is restricted as a manufacturing control in accordance with 7.8 and 7.9 of API Spec. 5CT.
